Built for

installers

Set the line once. Every panel follows.

Request a quote

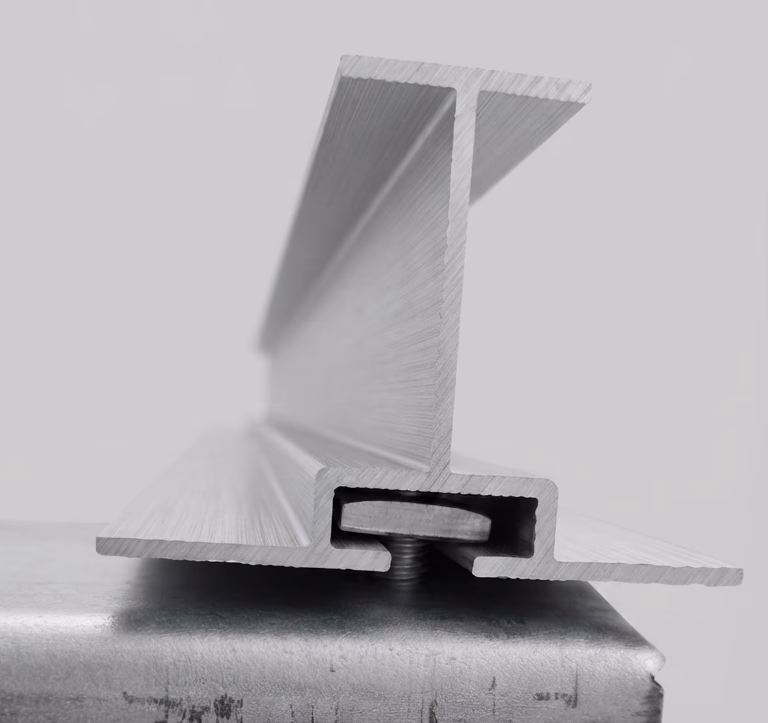

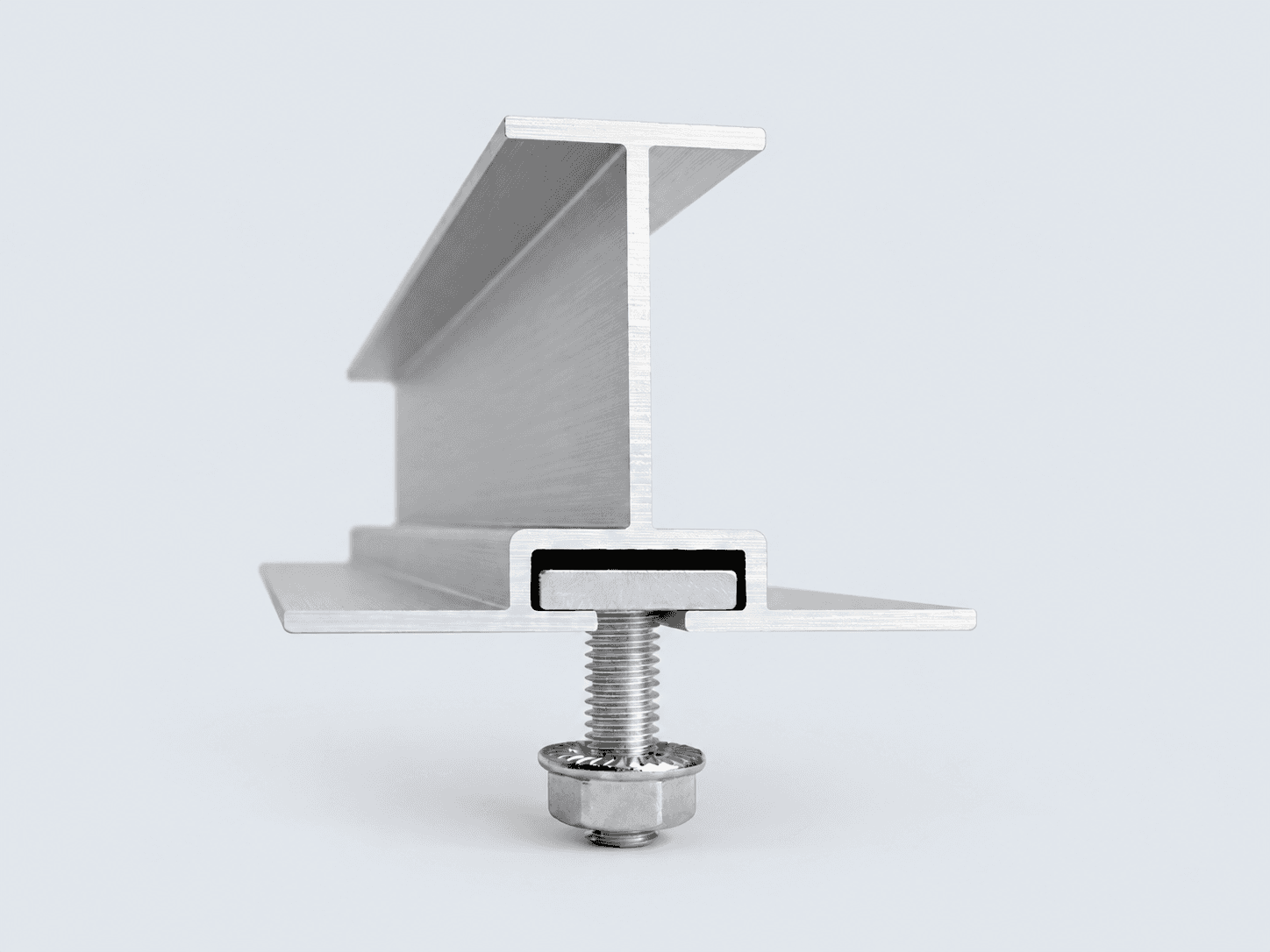

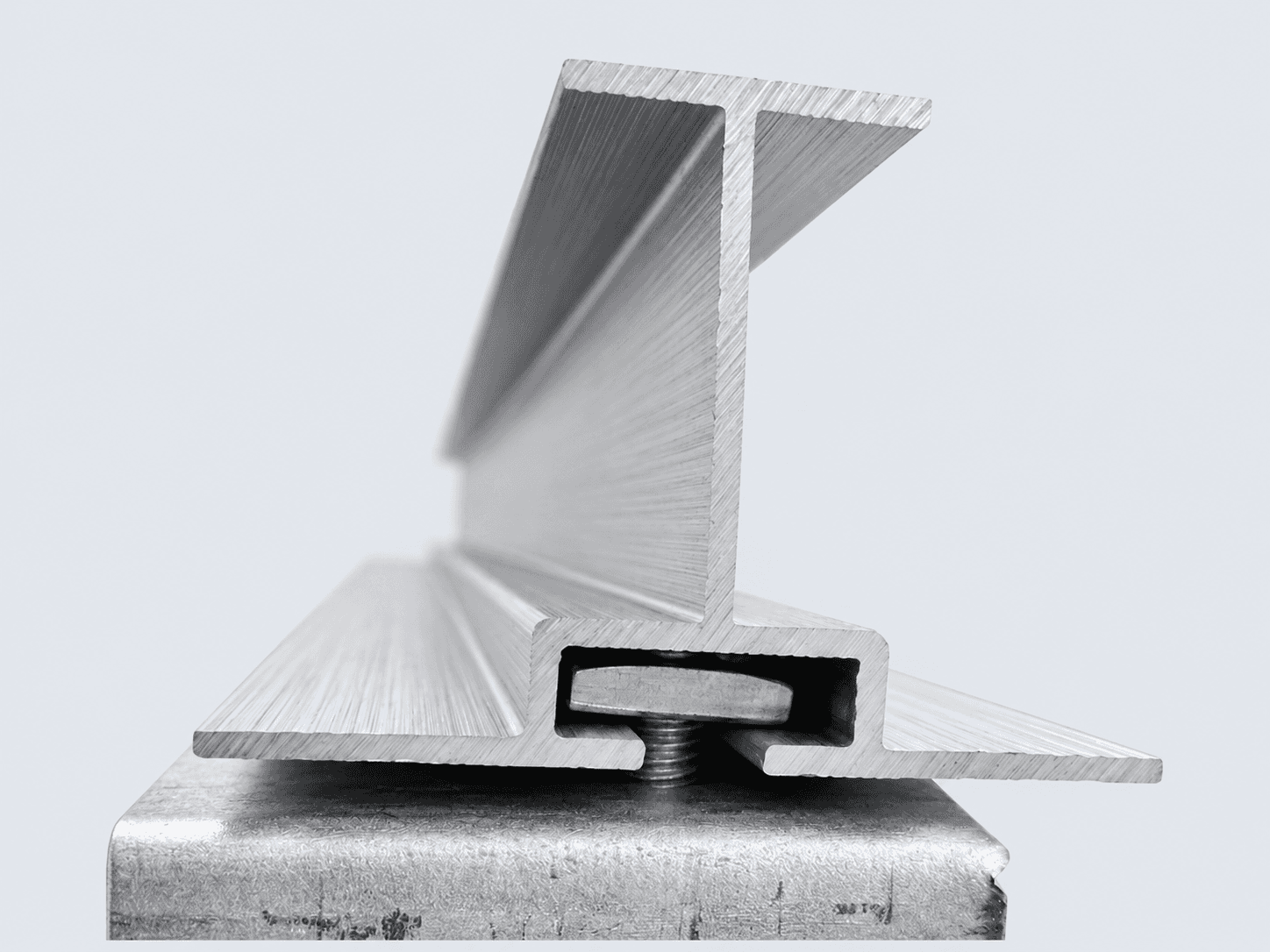

I-Mount aluminium mounting rail, cut away to show the centre channel profile
Modern house with solar panels, large windows, and a parked car.
Modern house with solar panels, large windows, and a parked car.

One line. One rail.

Why I-Mount

Built to make the job easier

Six things the rail does differently.

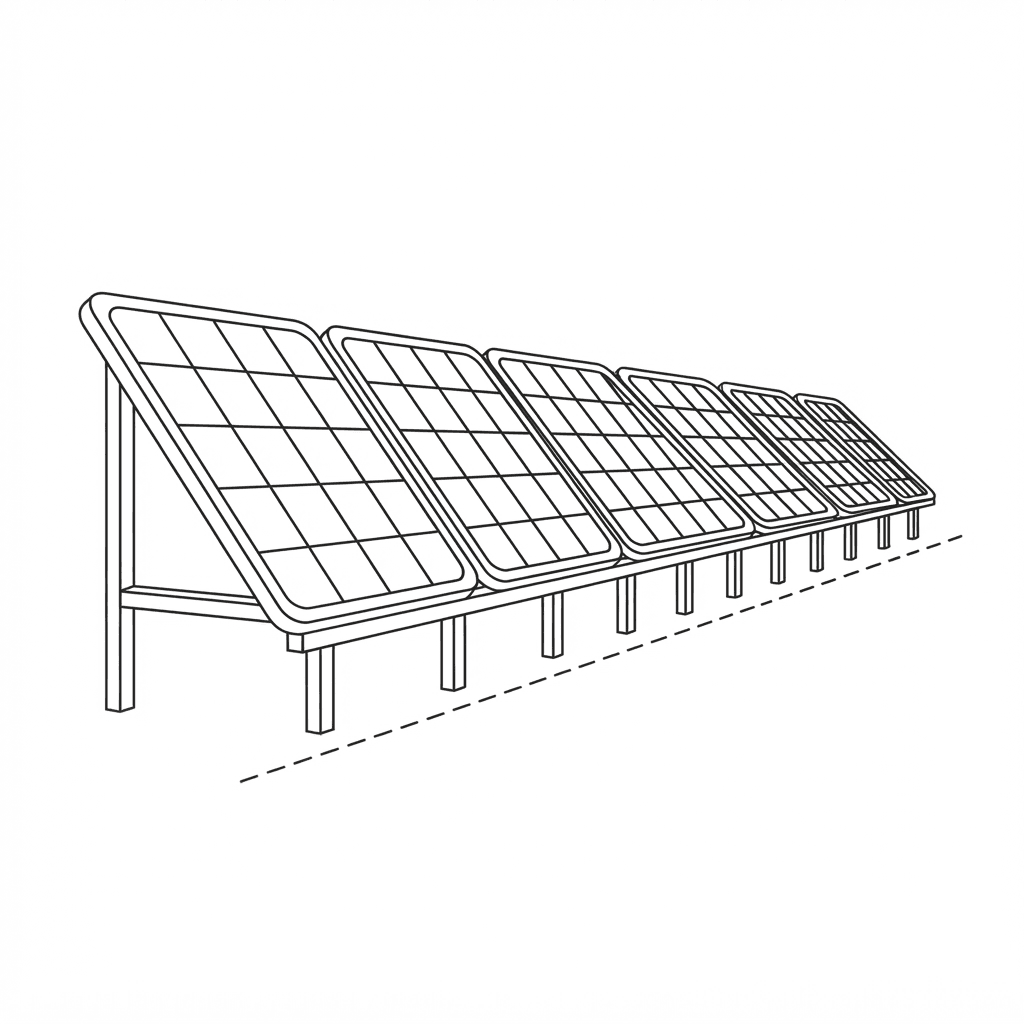

Straight by design

Wind turbine, house with solar panels, person on scooter

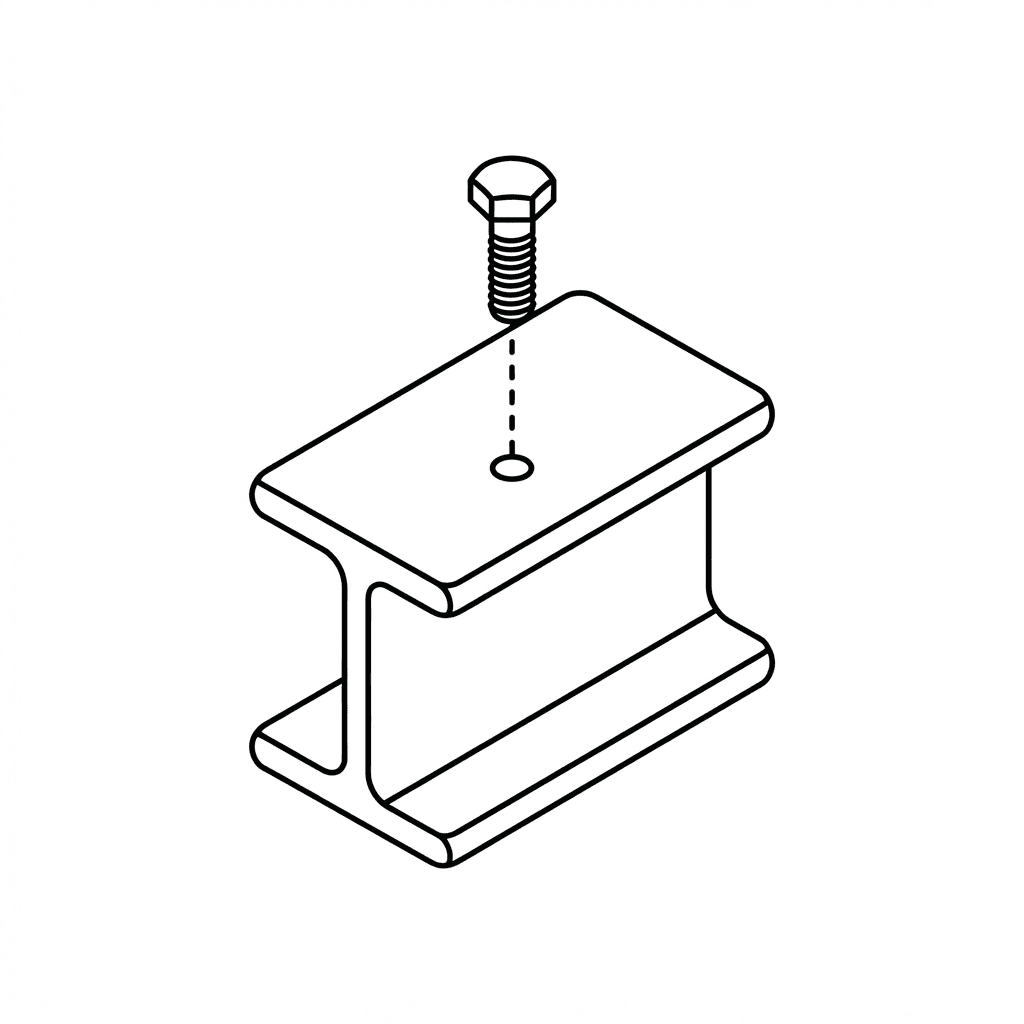

Lip channel fixing

Modern house with solar panels, wind turbine, and dollar sign

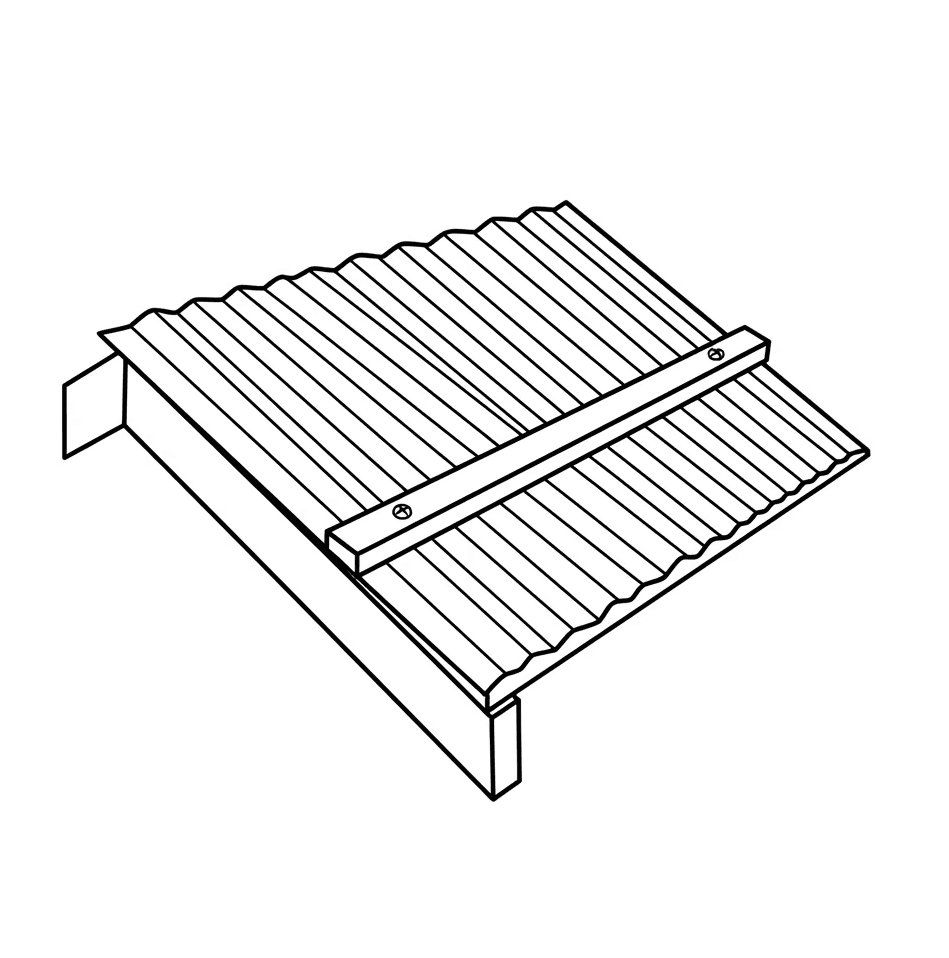

Fixes on multiple surfaces

People presenting a graph near a house with solar panels.

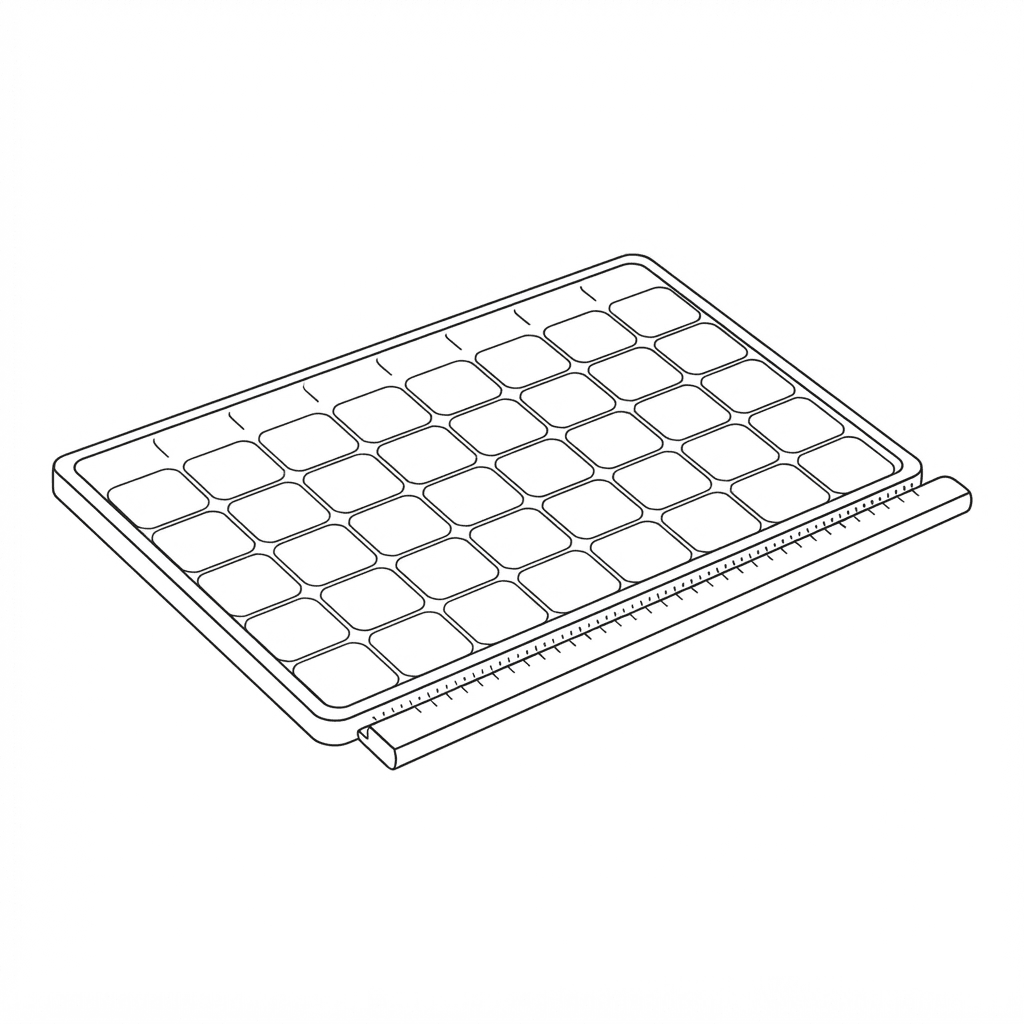

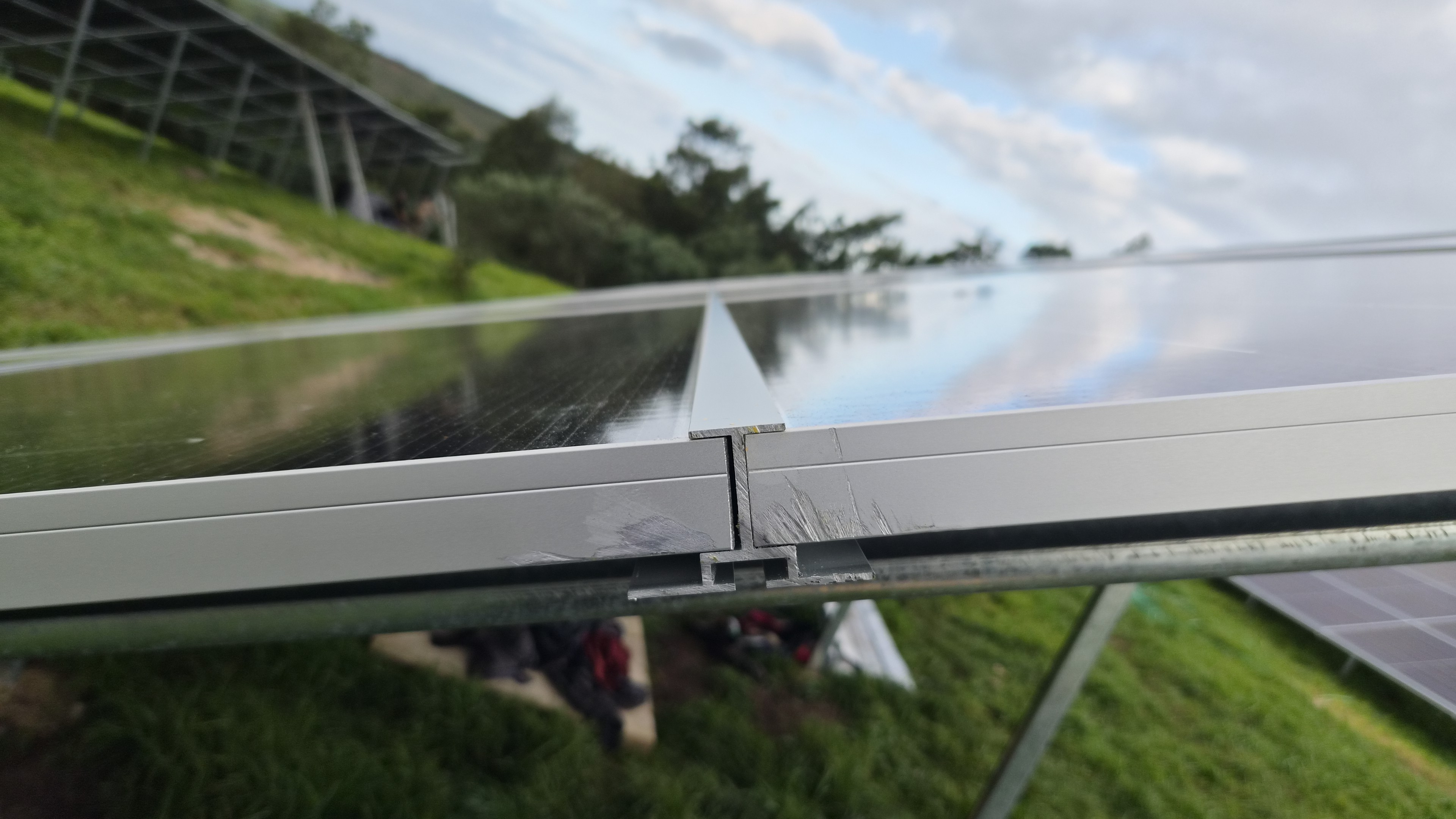

Clamps the long side

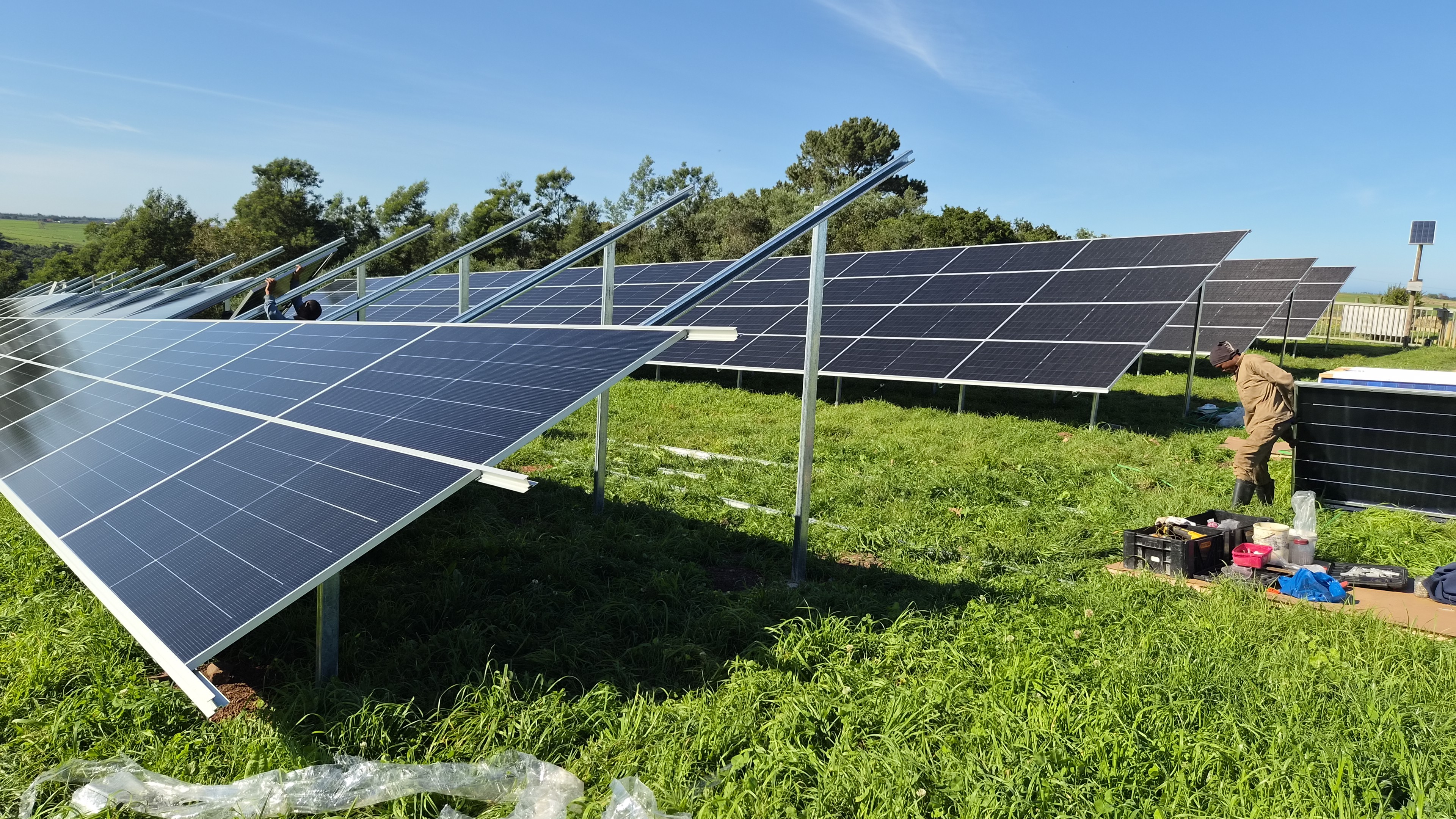

Workers install solar panels on a house roof.

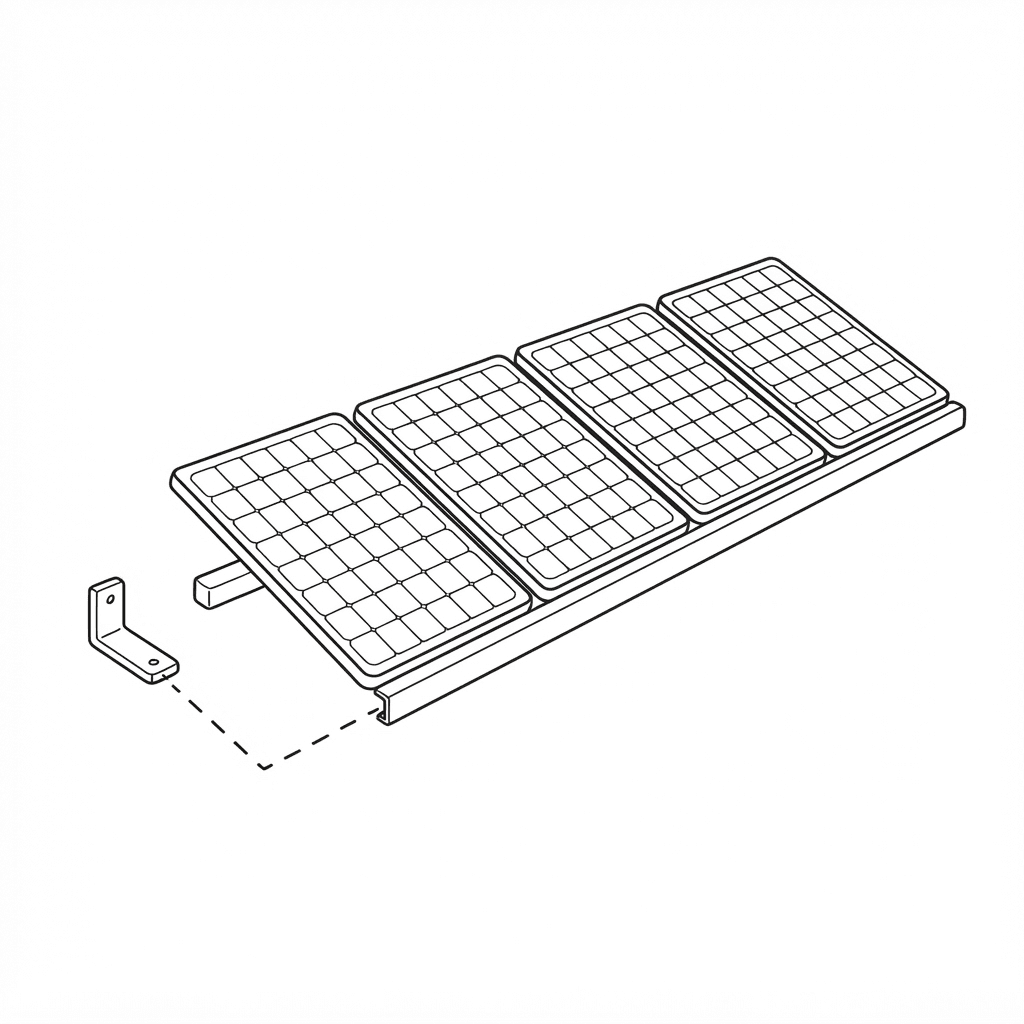

Stop ends lock the row

Solar panels under a house roof with sun

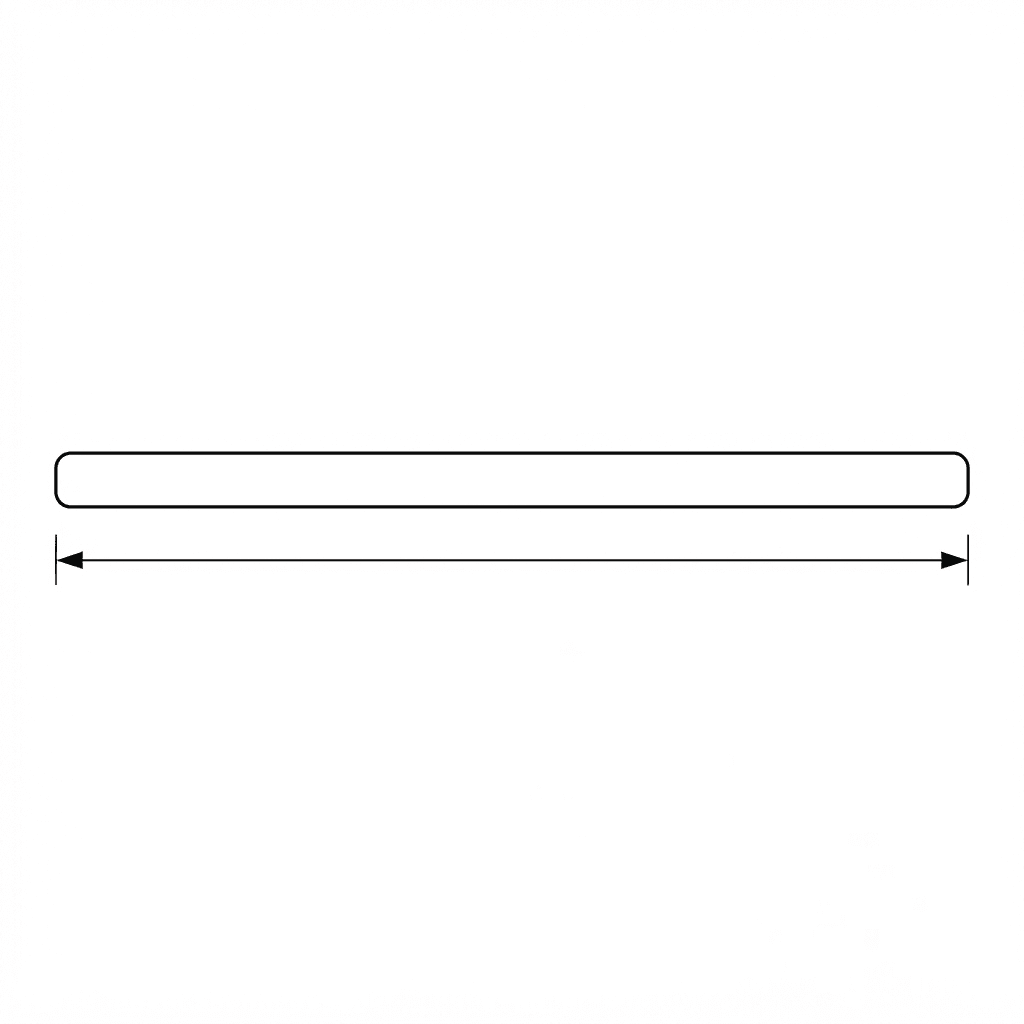

Six metre lengths

Electric car charging, house with solar panels

Fixing options

How it fixes down

One rail. Three ways to fix it, and what it looks like on the stand.

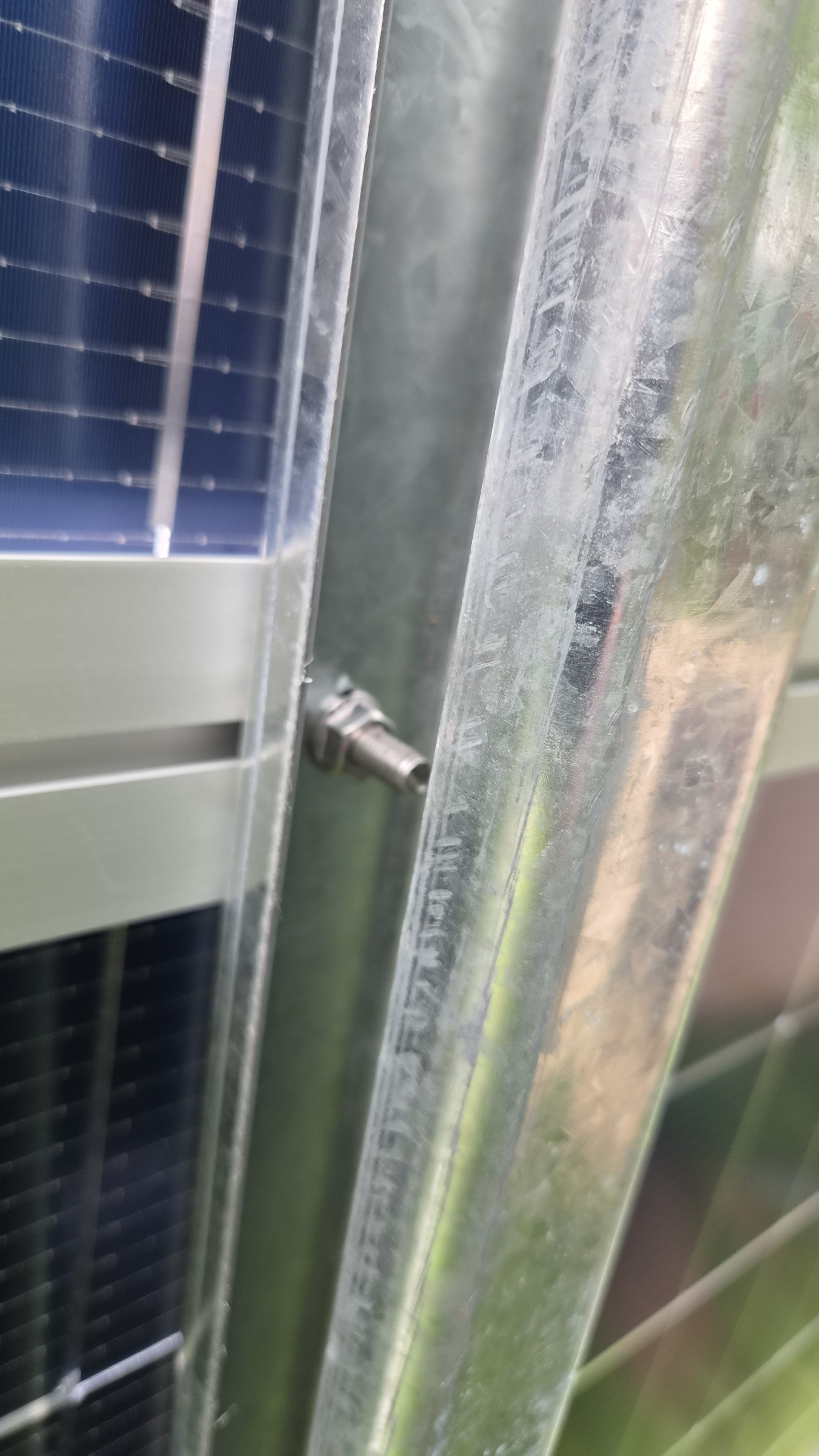

T-bolt in the channel

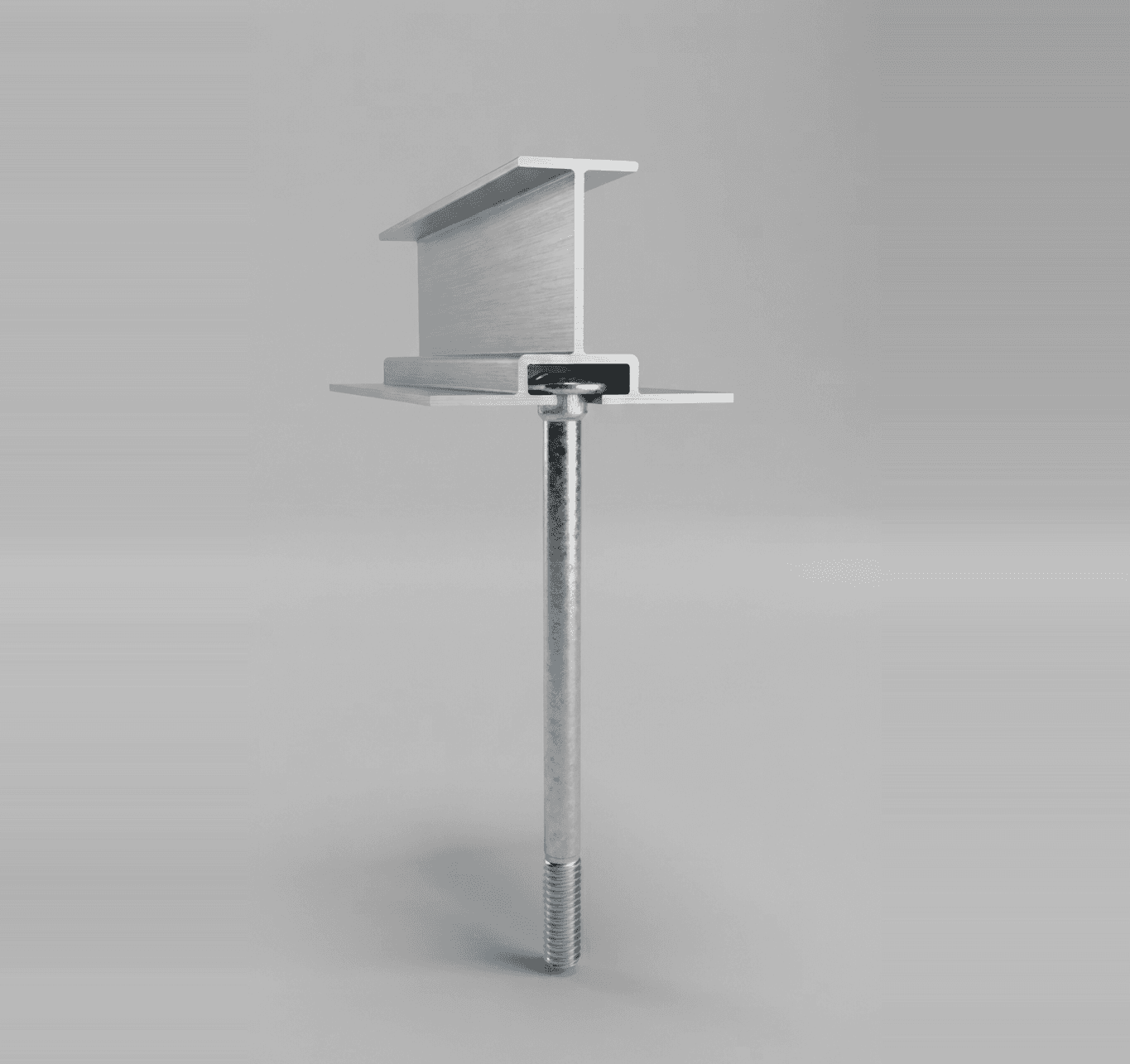

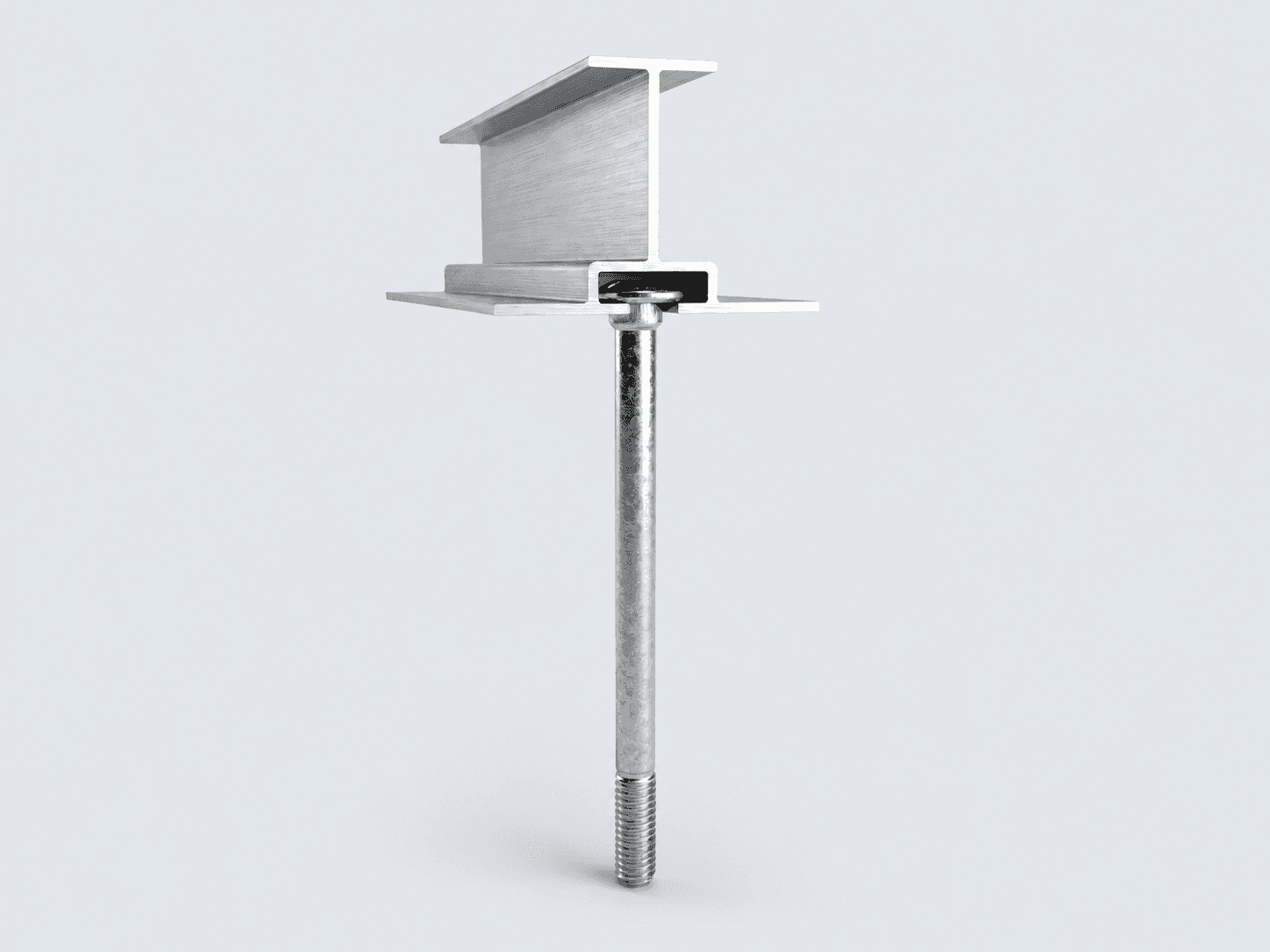

Long bolt for deeper steel

Long bolt for deeper steel

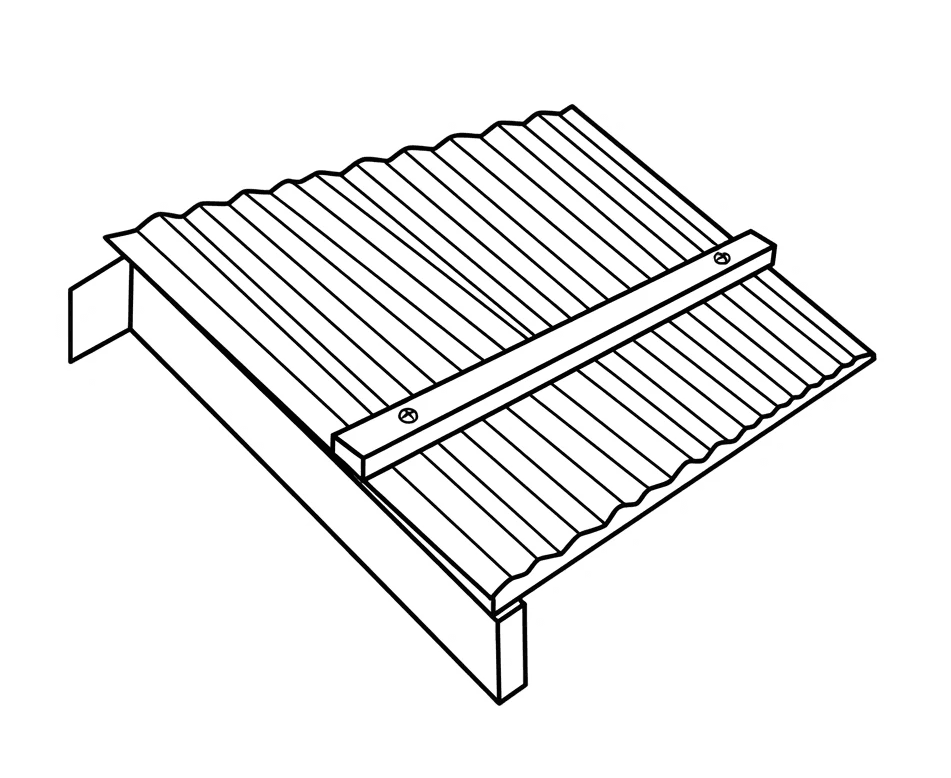

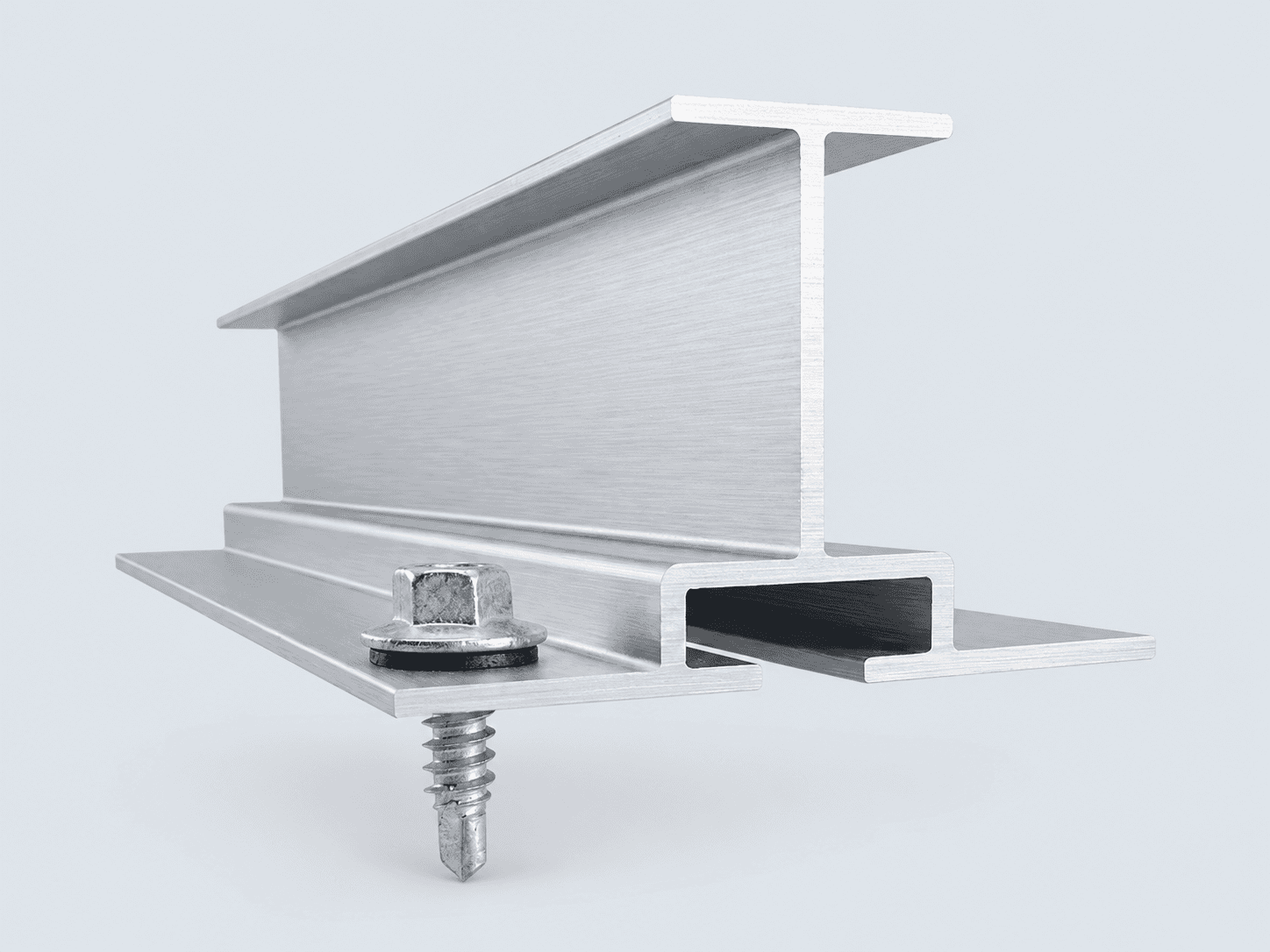

Screwed down flat

Screwed down flat

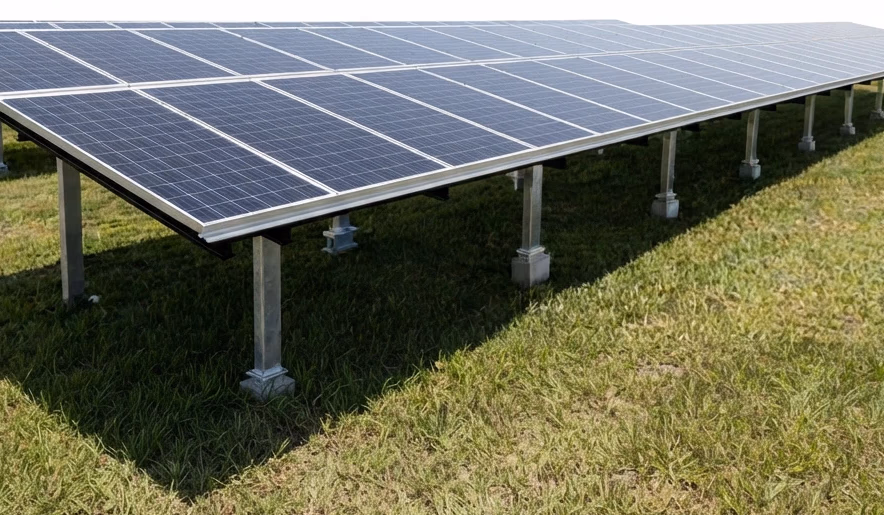

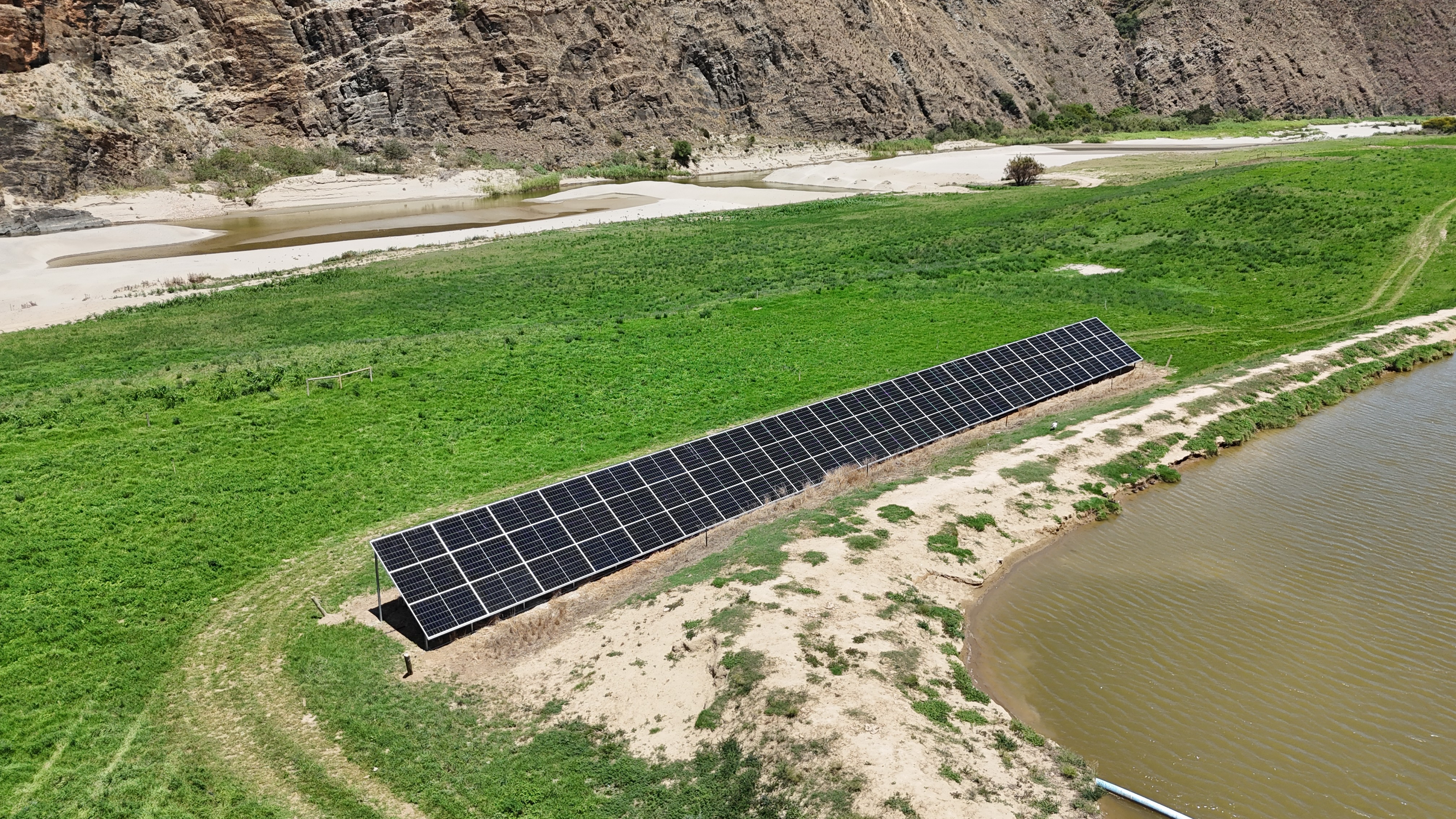

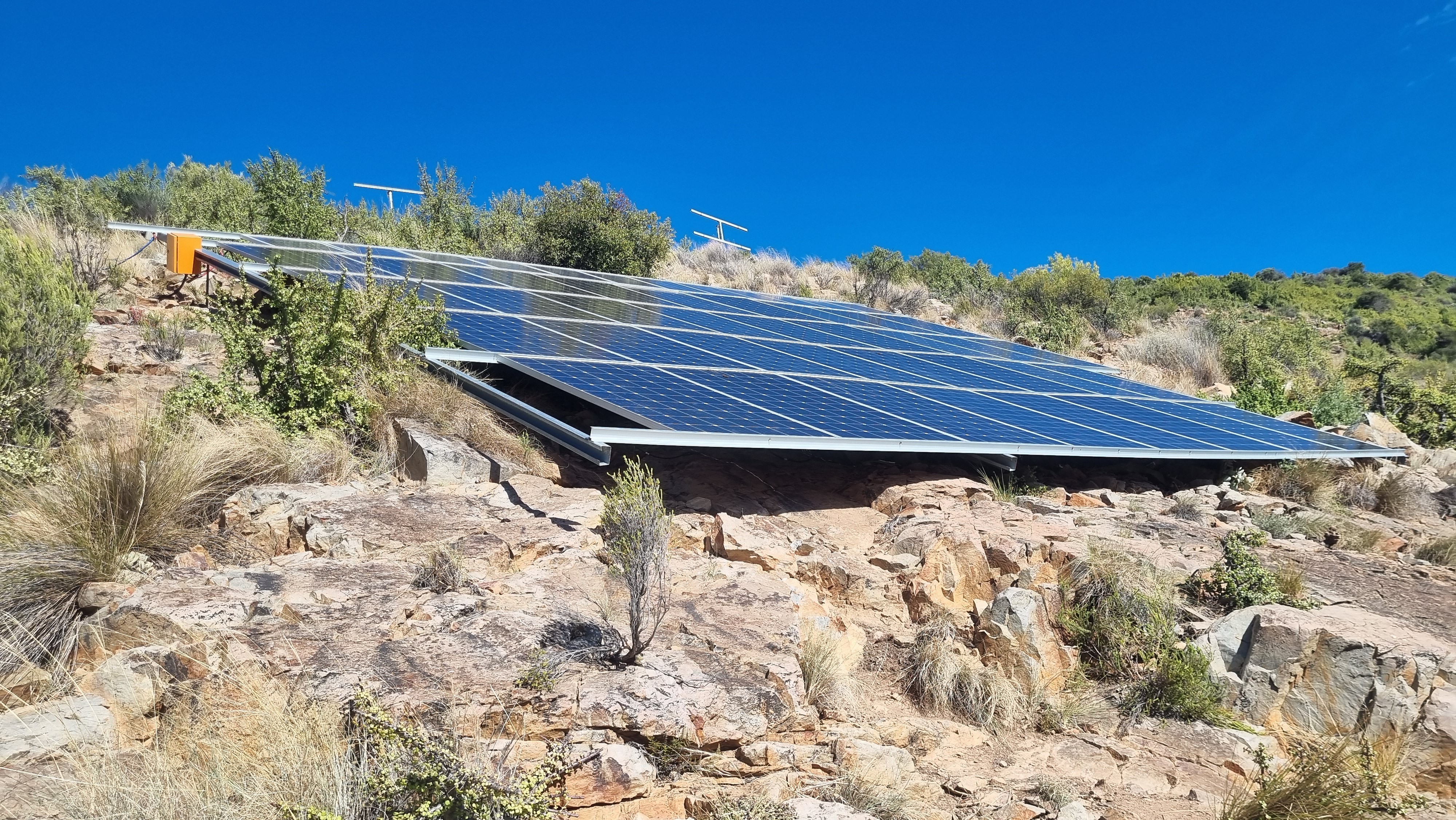

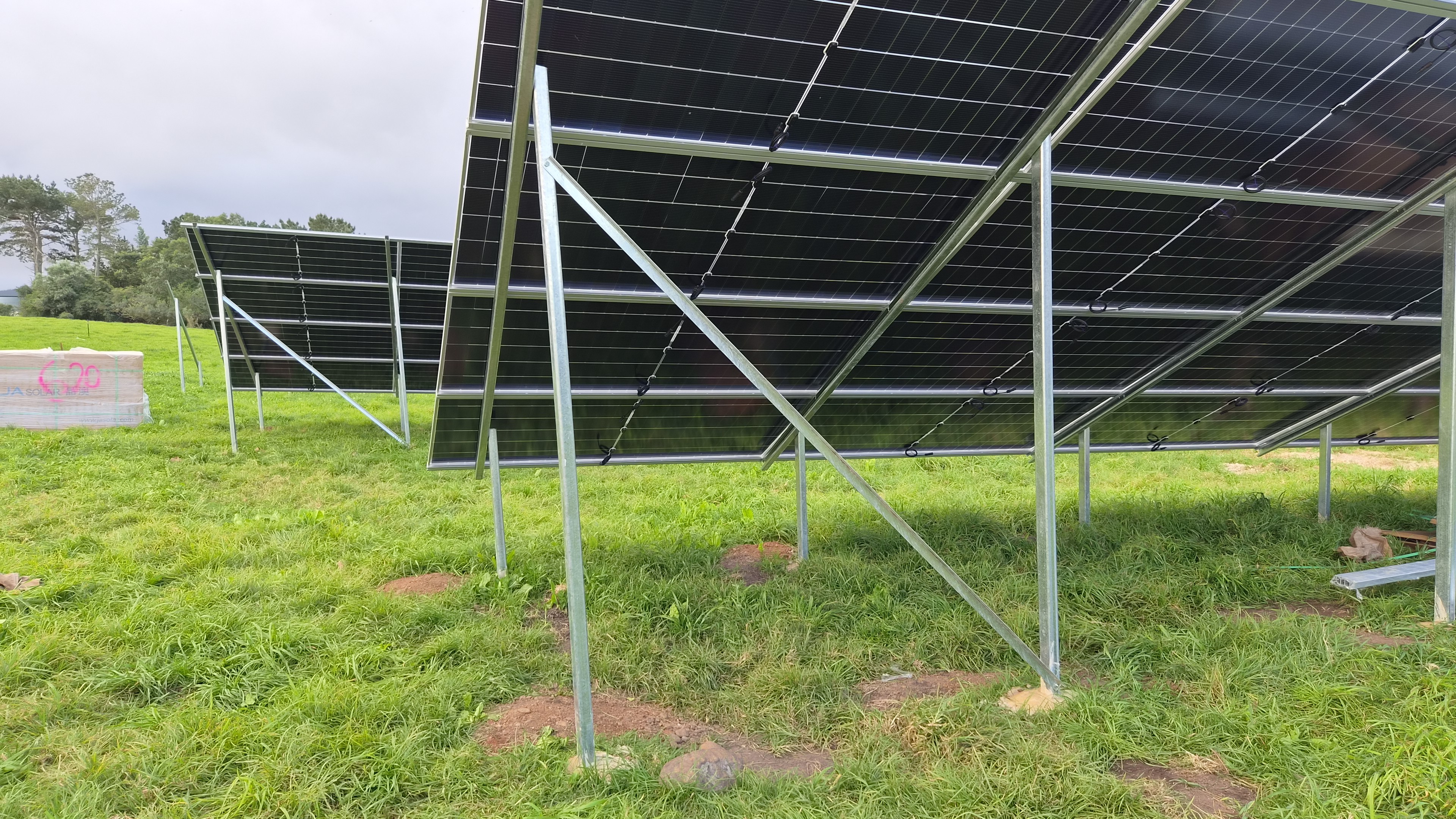

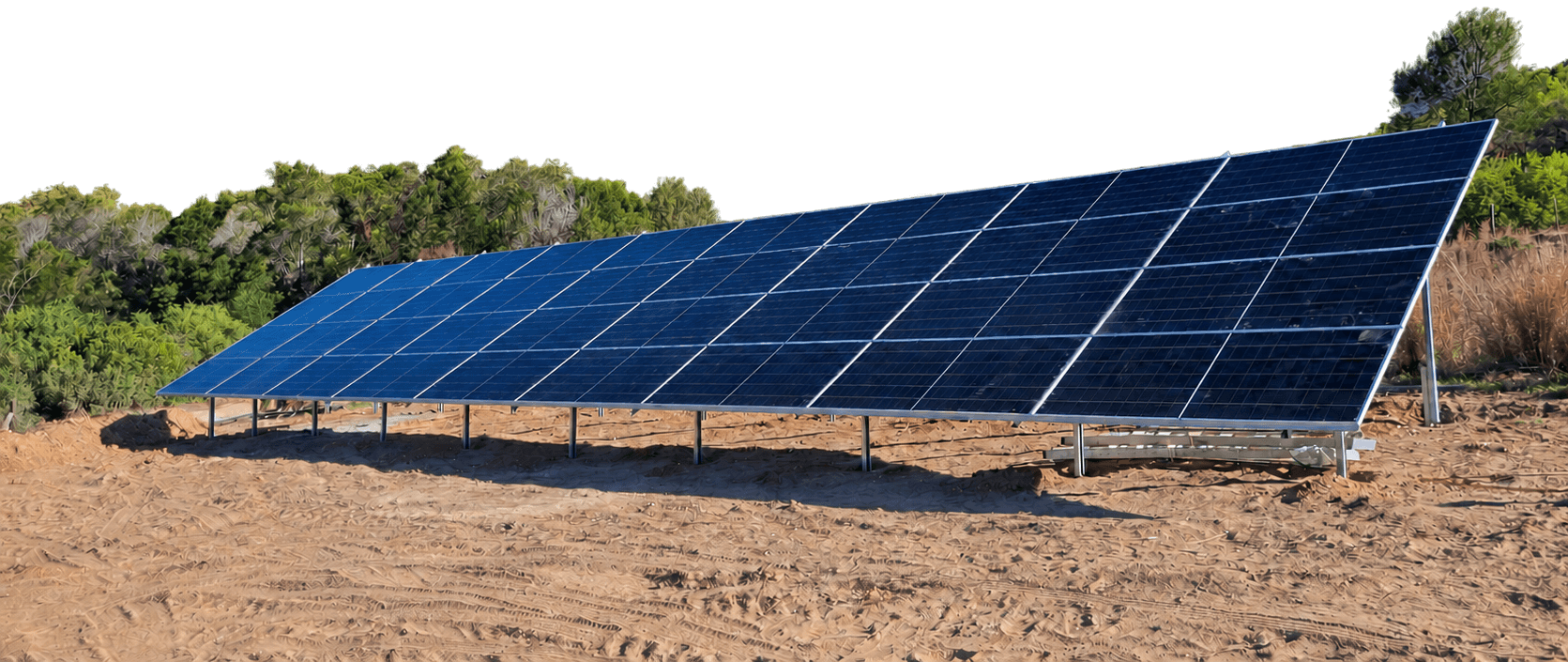

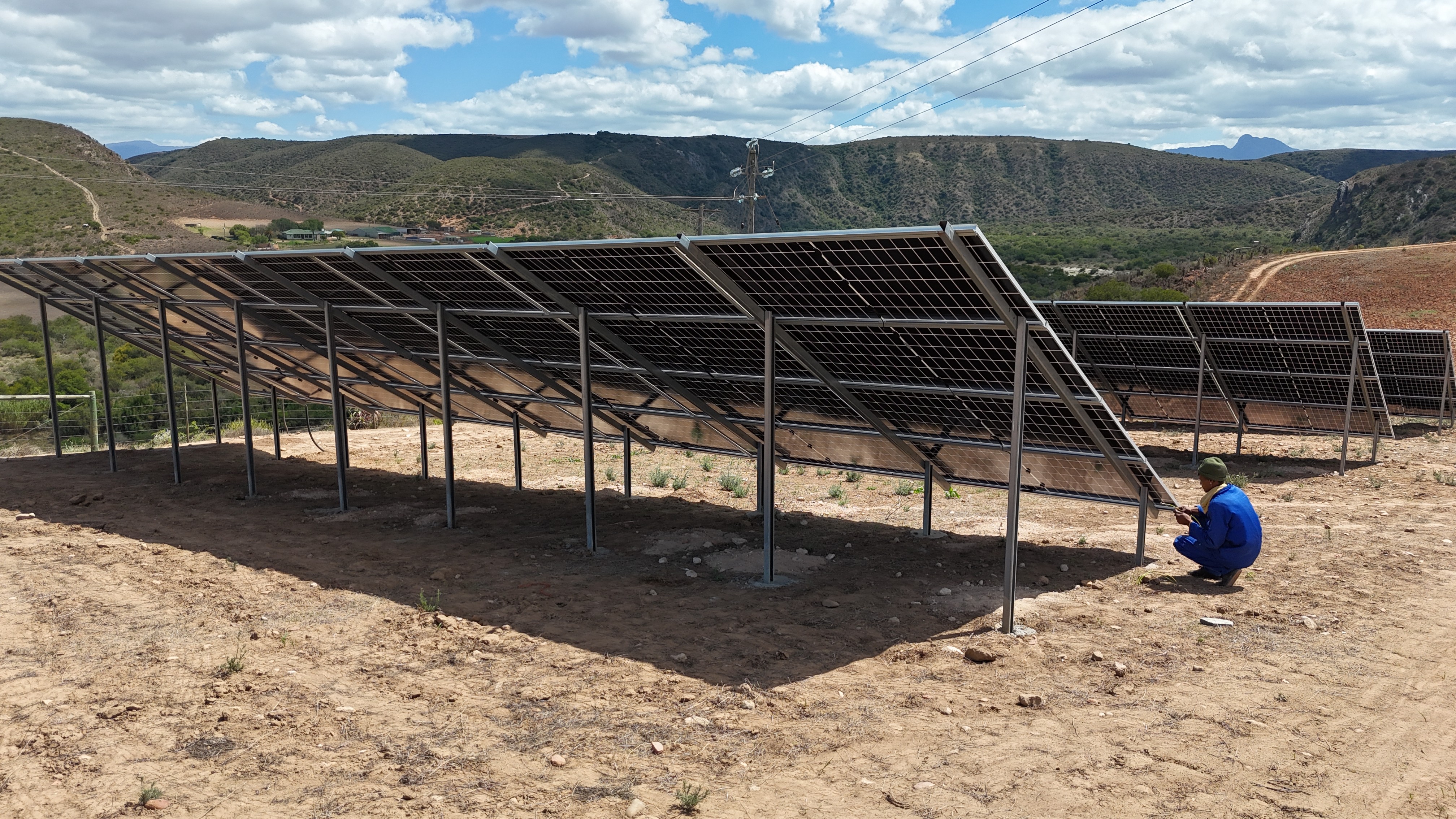

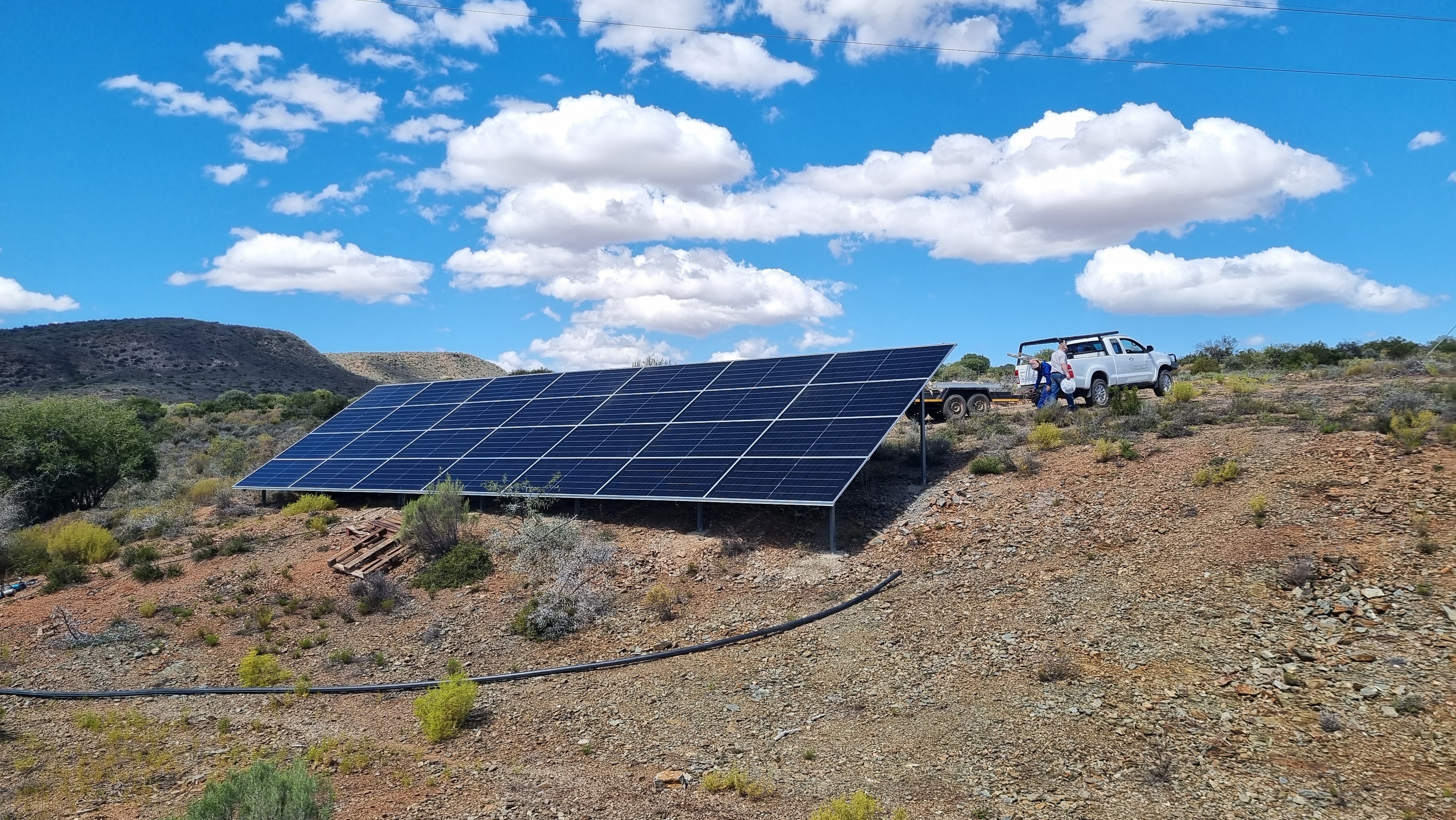

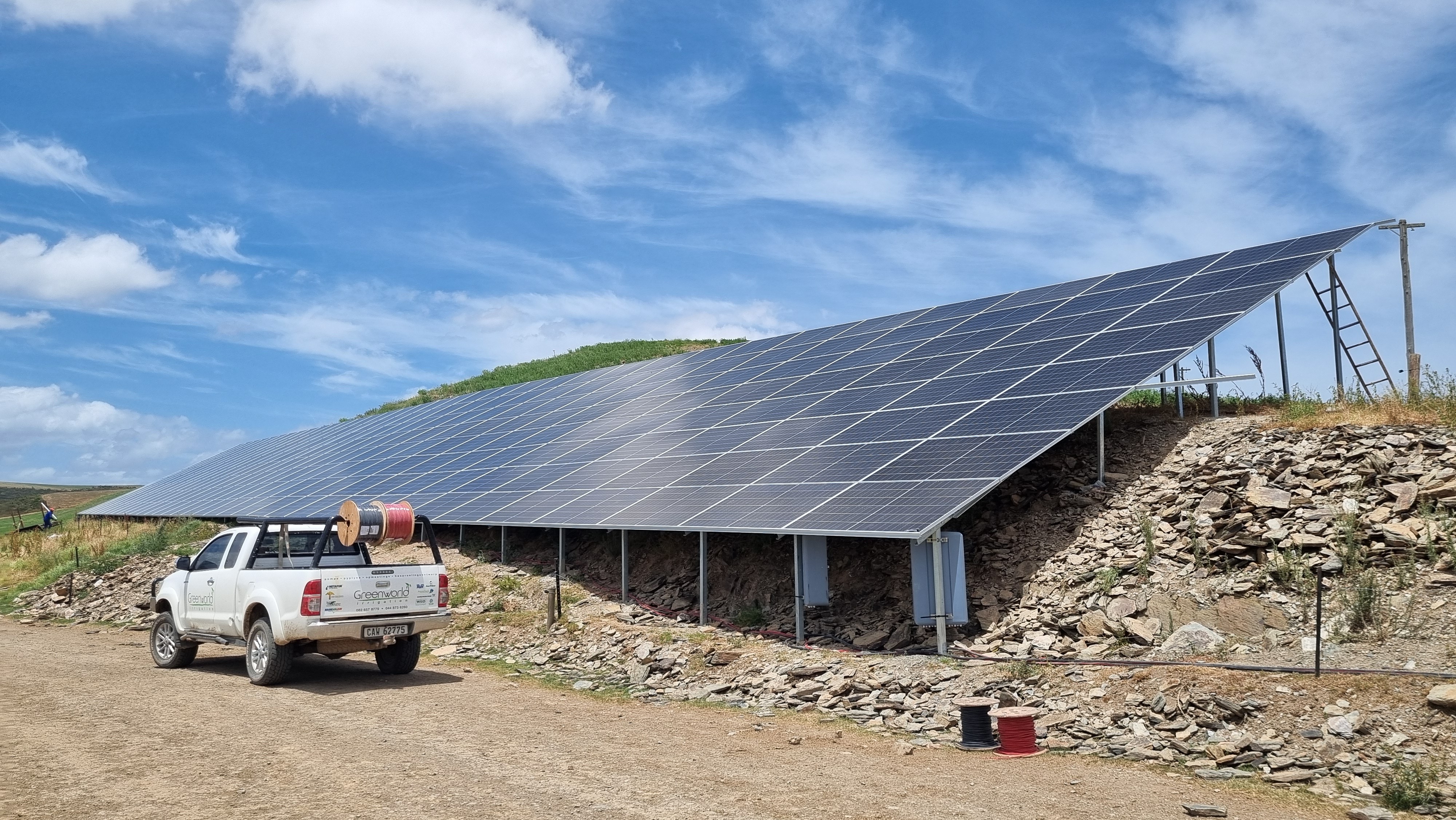

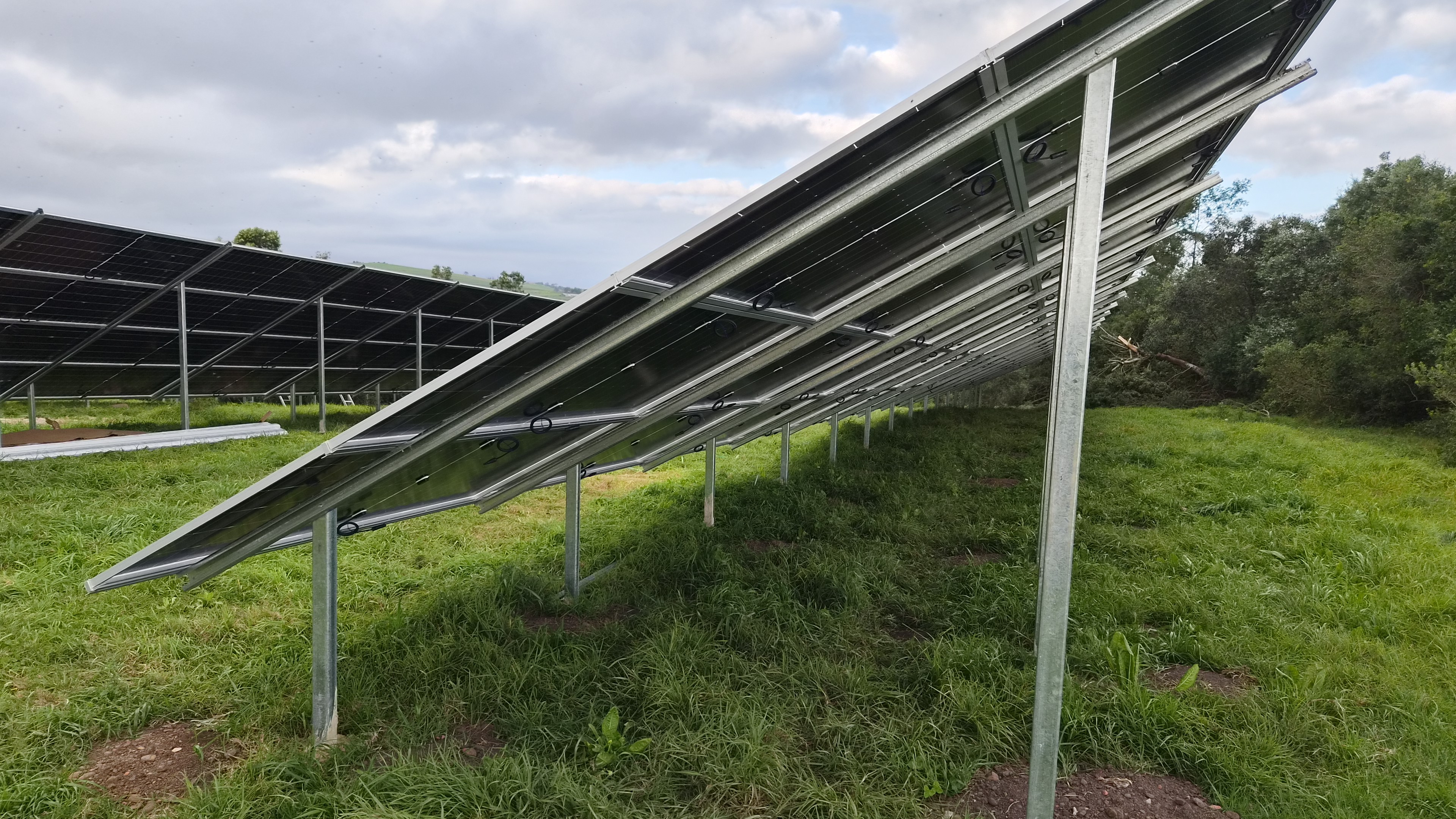

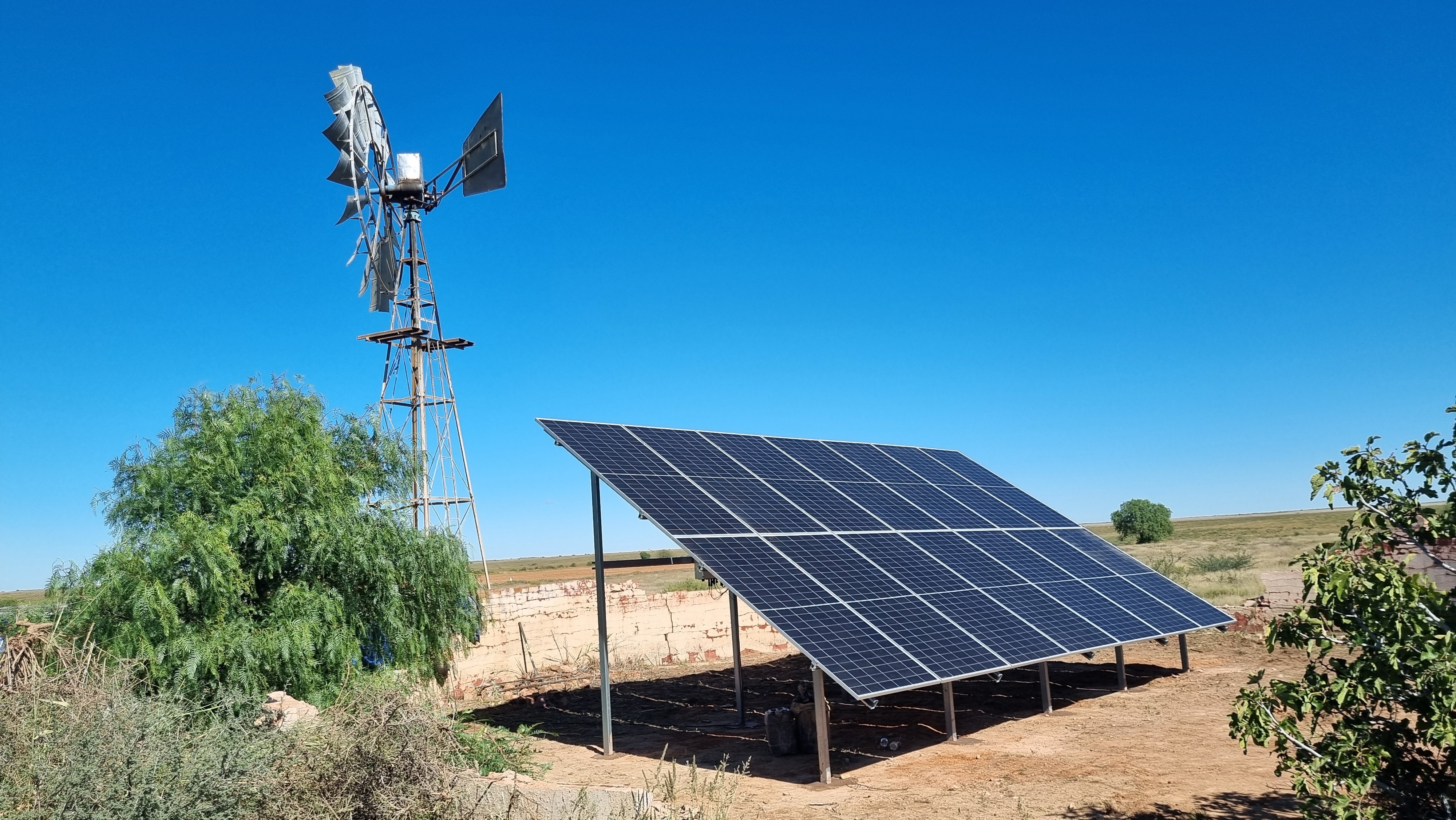

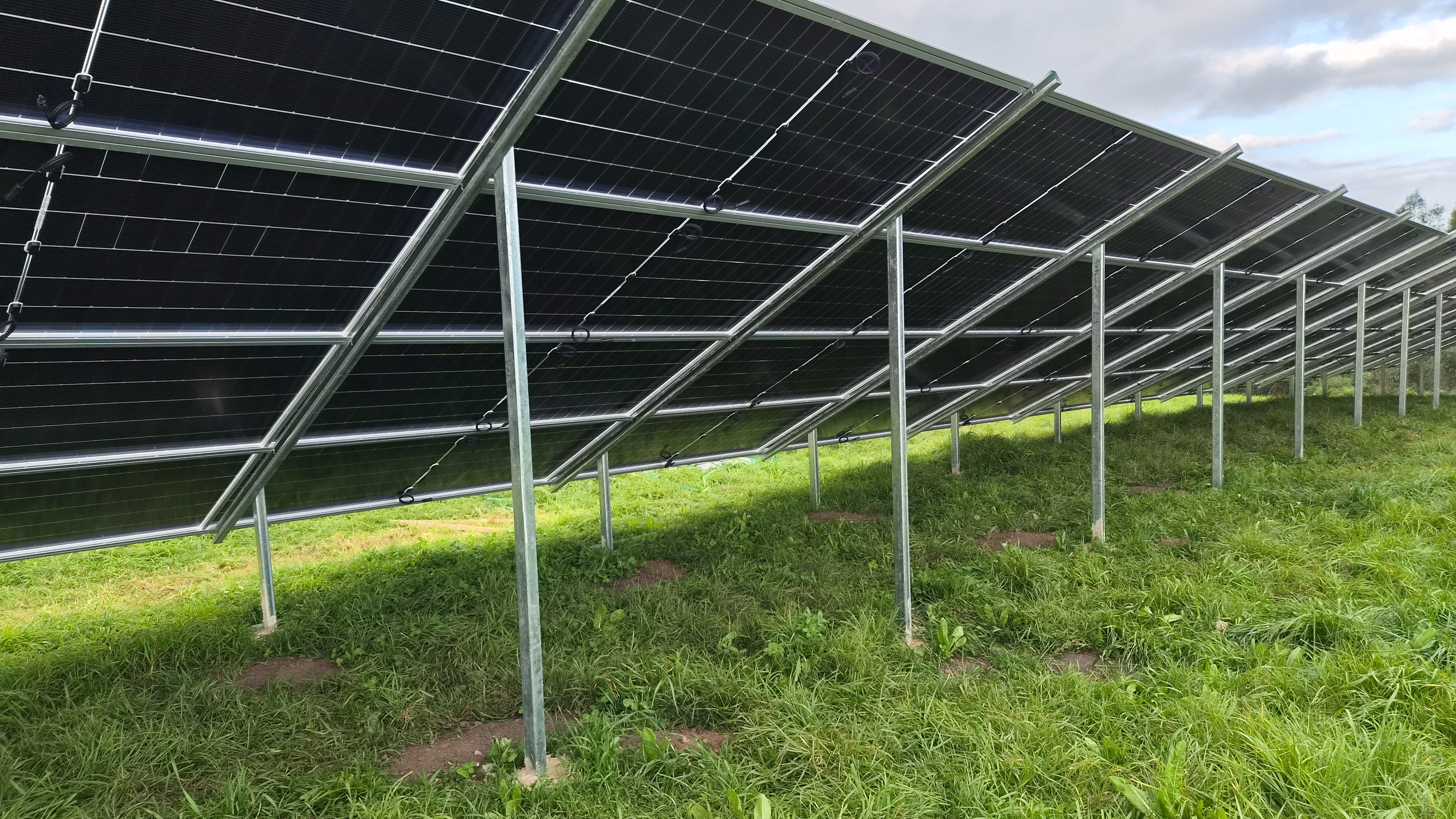

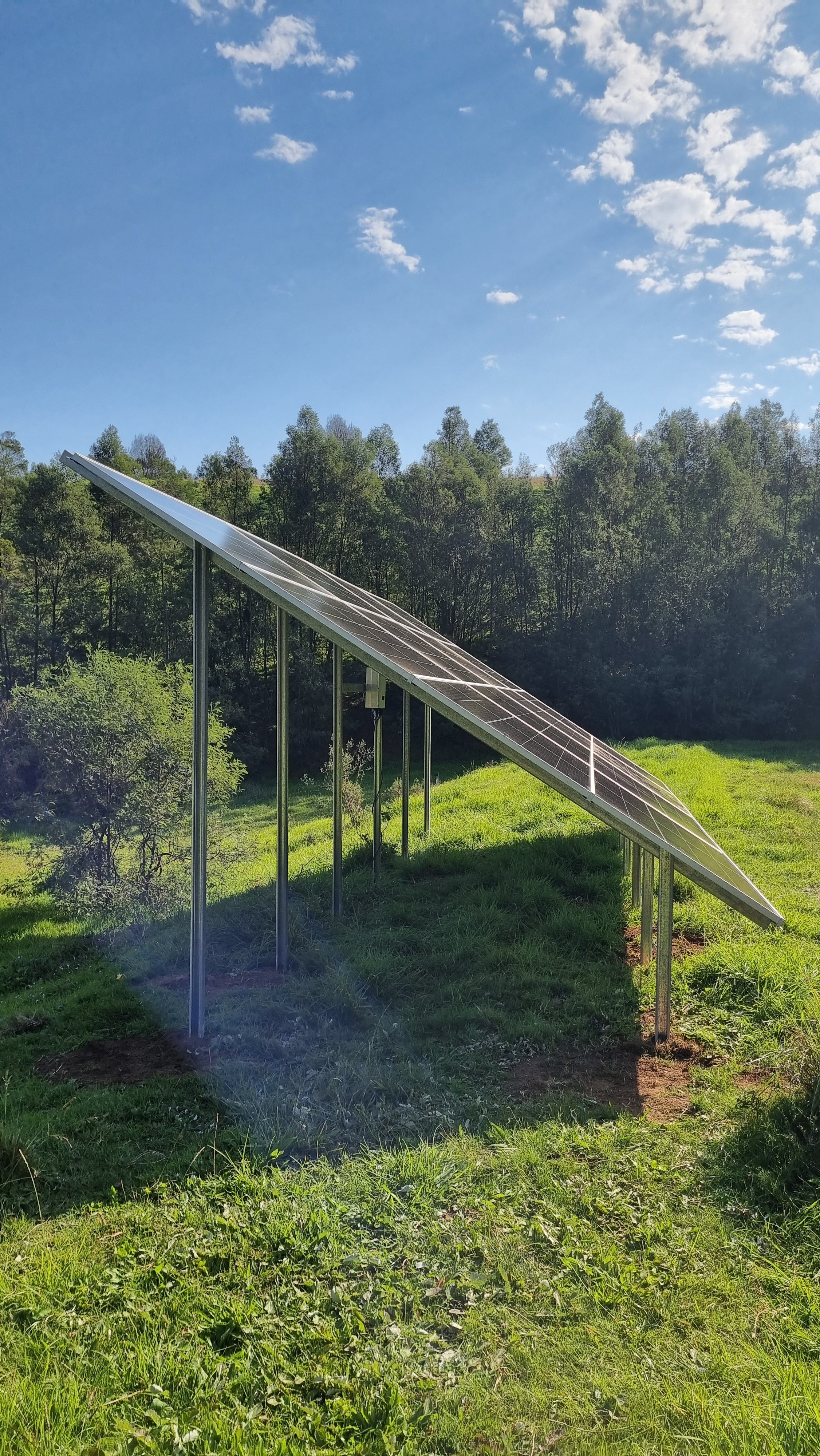

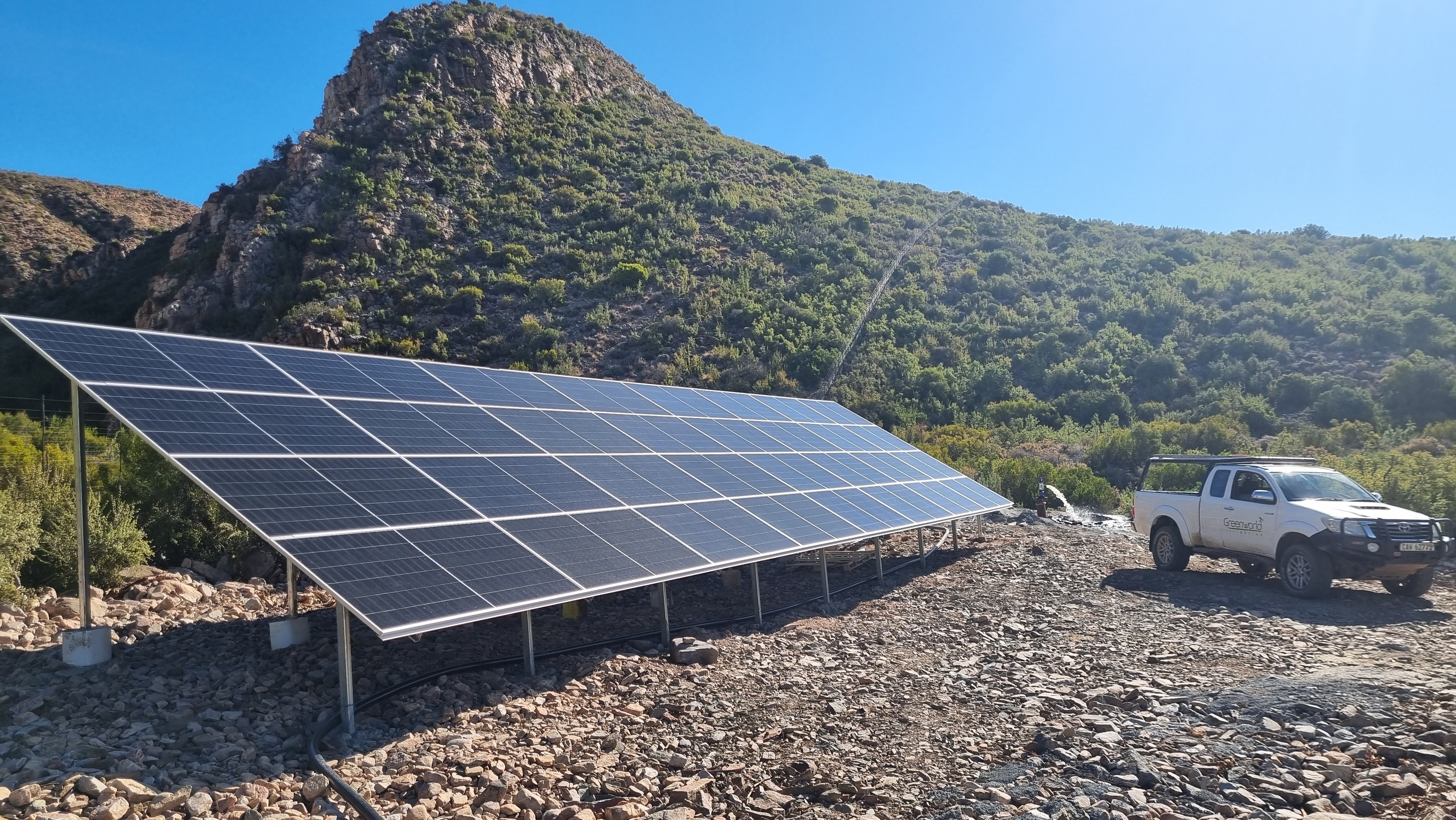

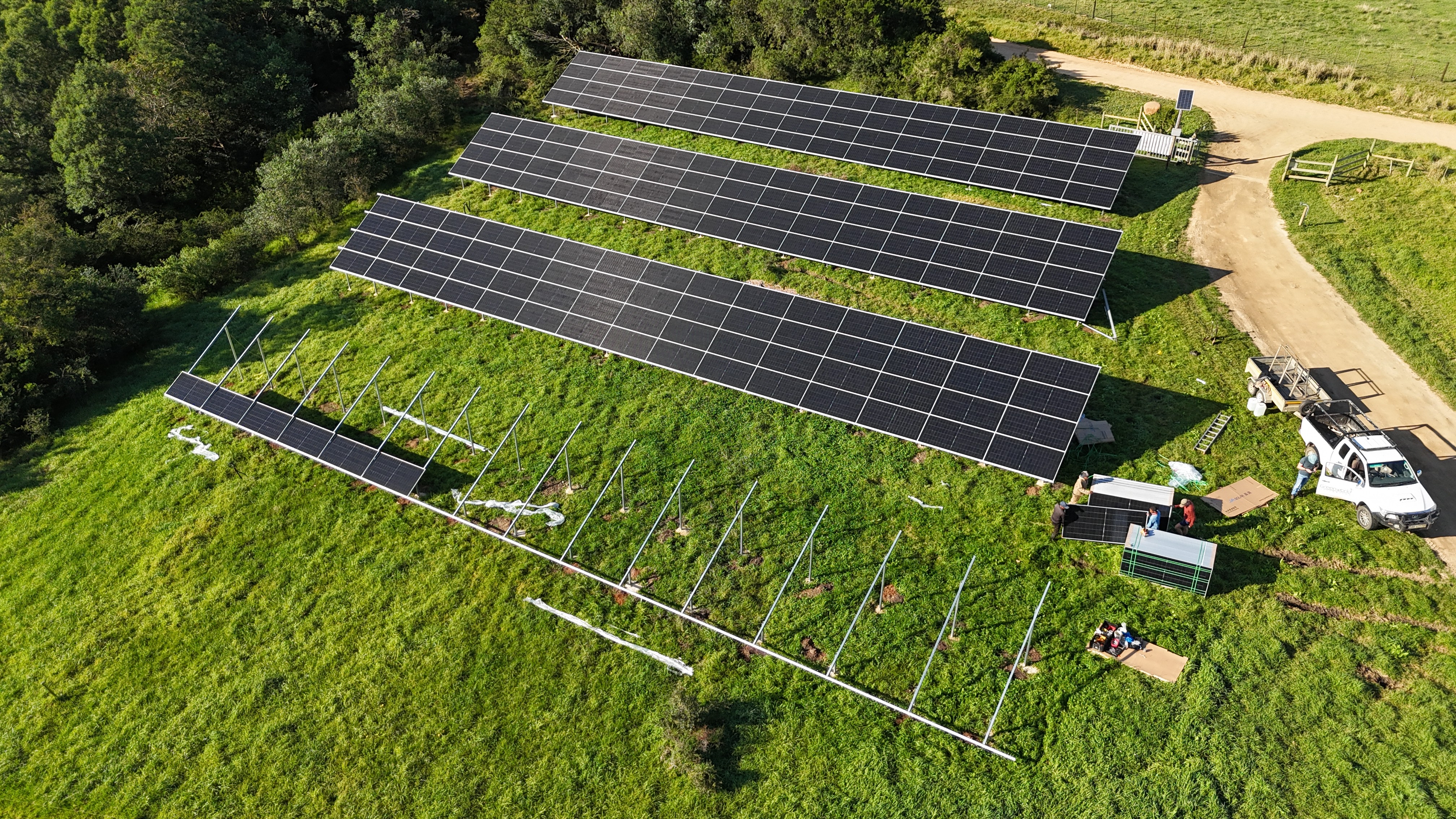

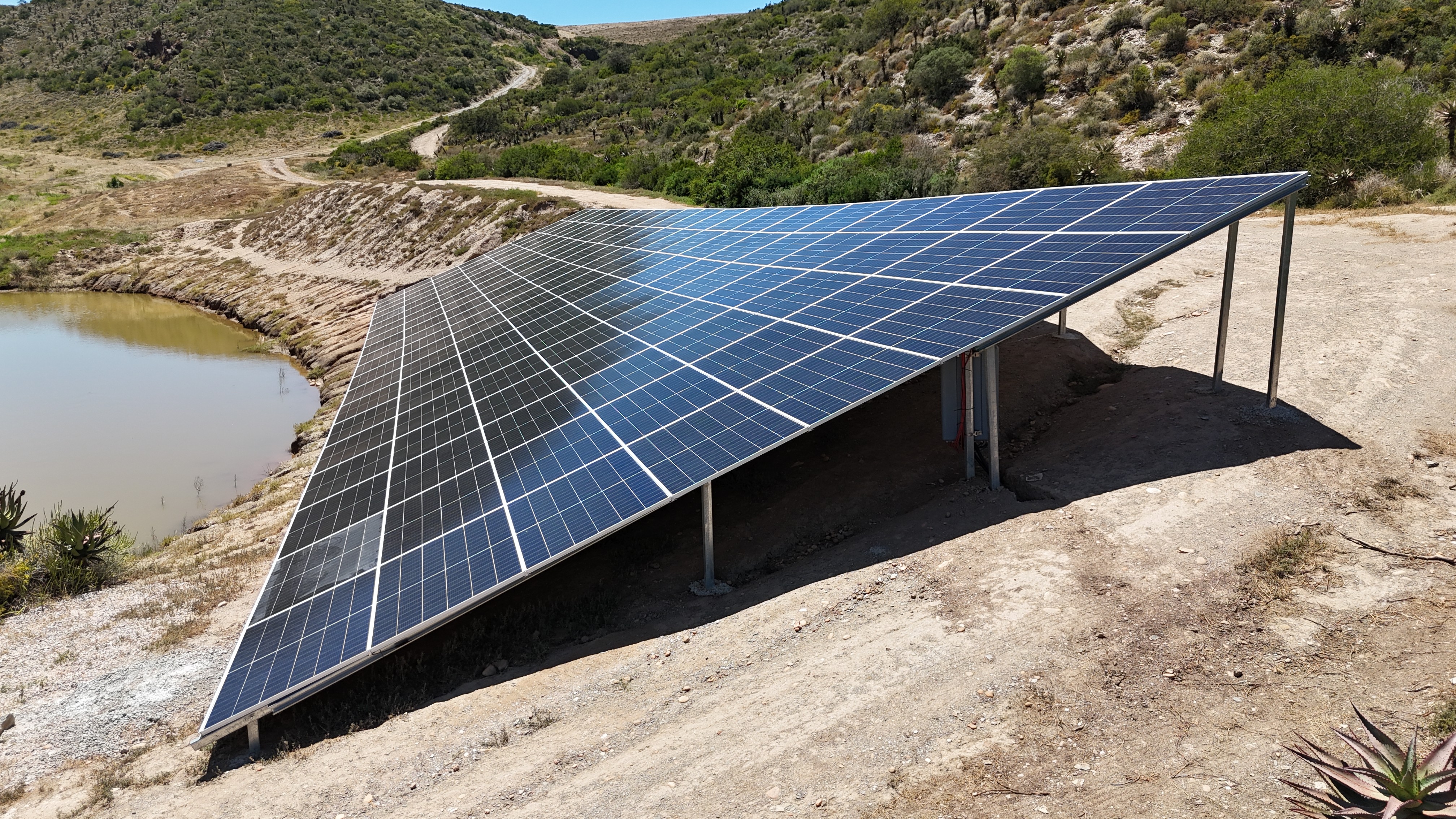

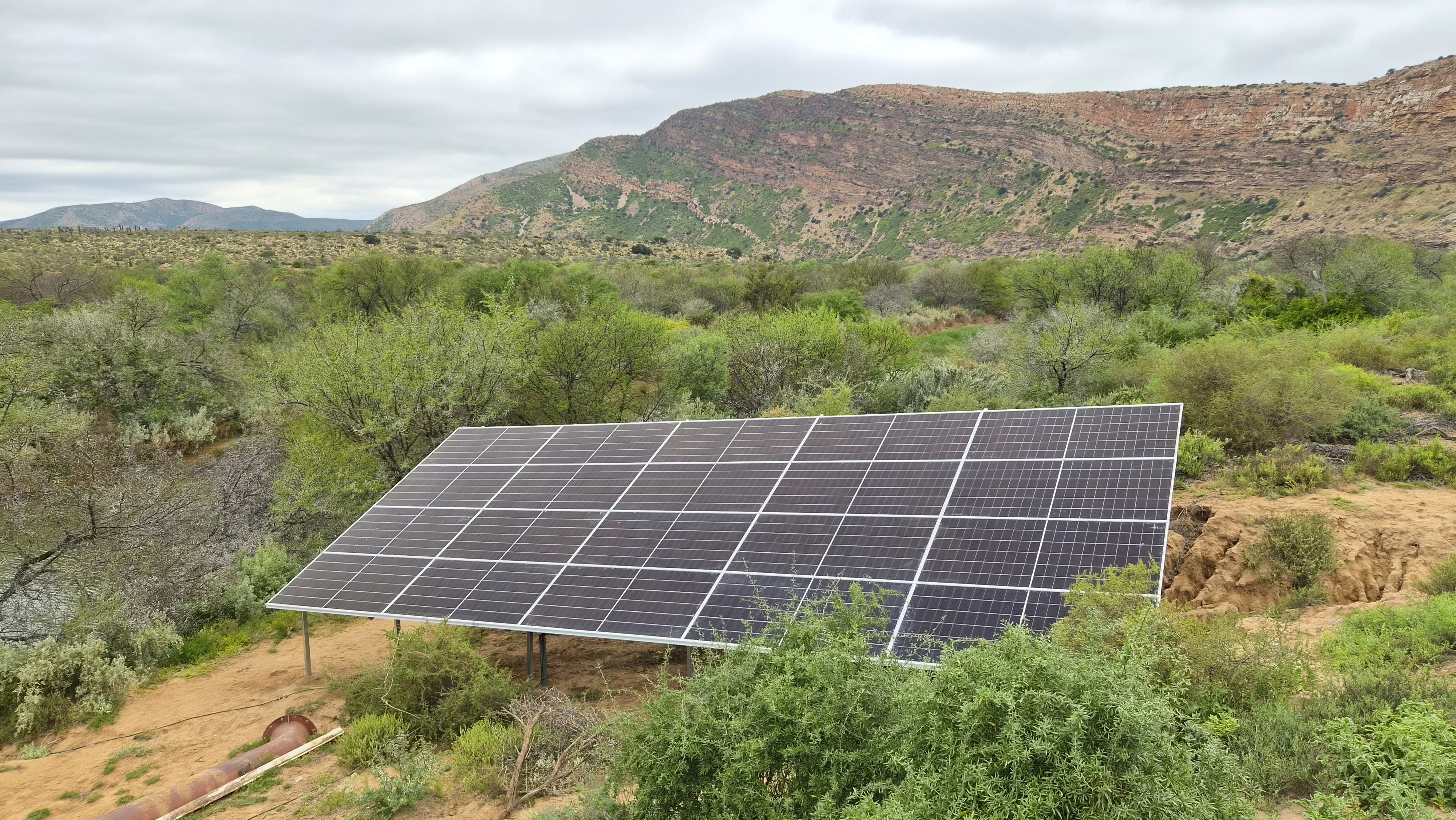

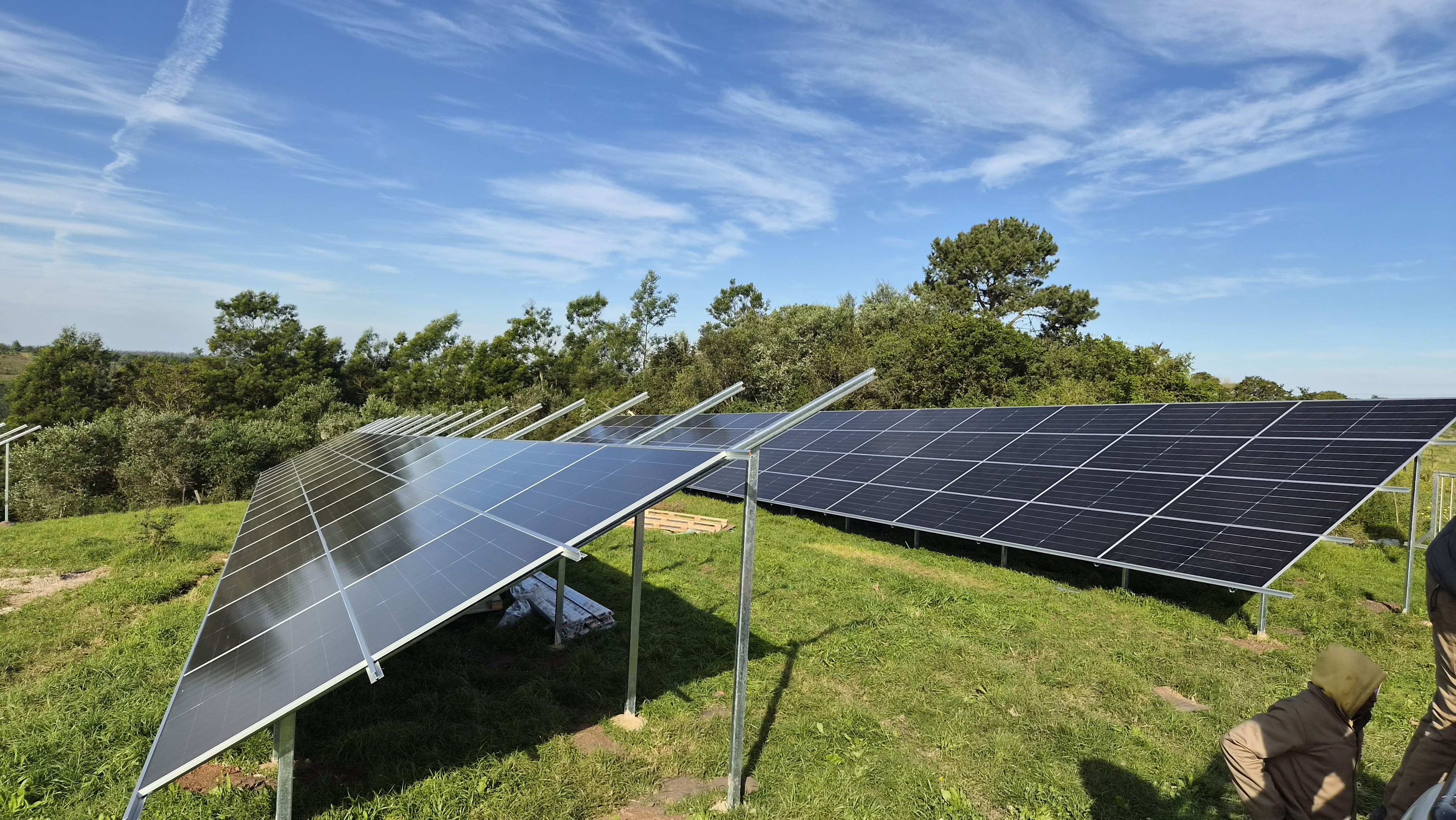

On the stand

On the stand

How it works

Four steps on the stand

Mark a line, fix the rail, pack the panels, fit the stop ends.

01

Set the line

Mark your line

Drill to it

Fix the rail down

02

Pack a row

Panels go in landscape

Spacing is set by the channel

Nothing to measure between

03

Drill, clip, clamp

Drill through into the galvanised

Bracket clips into the channel

Clamp and move along

04

Fit the stop ends

L bracket at each end

The run locks into one sheet

Stand is finished

FAQs

Common questions

The things installers ask before their first run.

Need more help?

Questions about spans, panel sizes or ordering? Send us the detail and we will come back to you.

Request a quote

What is I-Mount?

A six meter mounting rail for solar panels. You fix it to your line and the panels seat straight, so the row stays square from the first panel to the last.

What does it fix to?

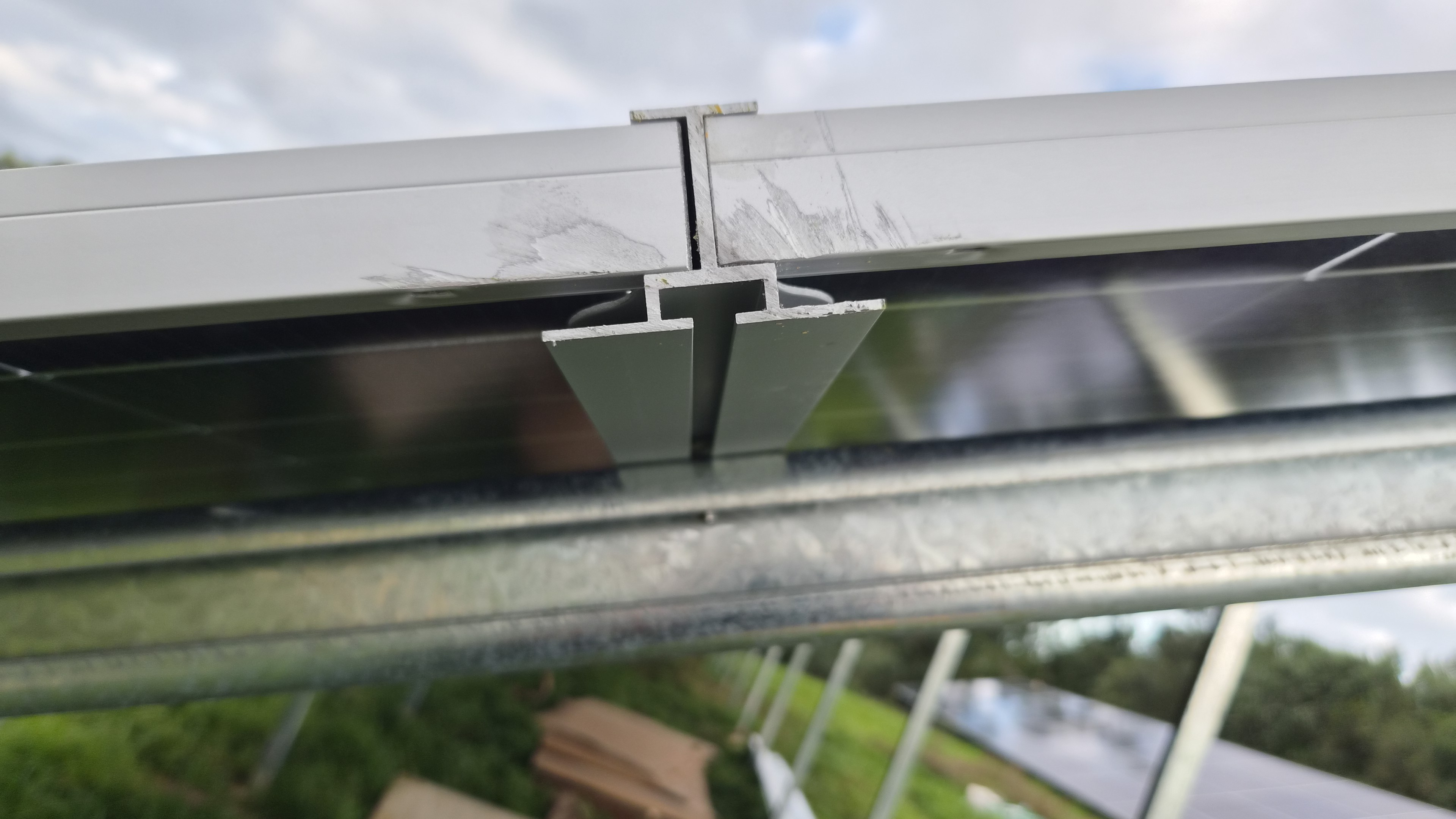

A pole, a purlin, a roof rafter, or straight into galvanised steel. It bolts through a lip channel with T-bolts from underneath, and there is room to drive a roofing screw if you are going into steel.

Why are the panels mounted landscape?

The rail clamps the long side of the panel, where the frame is stiff. Clamped on the short side, thin framed panels flex, and it is the glass that goes, not the aluminium.

Can I fix it without using the T-bolt?

Yes. You can screw the rail straight down onto a flat surface. The lip holds a gap between the panel and the mounting surface, so you keep clearance either way.

How long are the lengths?

Six metres, spliced with a flat bar joiner and grabber screws where the run carries on.

Which panels does it take?

Common framed panels. Send us your panel dimensions and we will confirm the fit.
